Digi XBee Gateways

Cellular gateways, modems and adapters with scalable device management

A cellular gateway in an IoT system converts wireless protocols like Zigbee, DigiMesh, or LoRaWAN to cellular. The gateway acts as a bridge between an enterprise LAN and the Internet, and can connect a variety of network protocols to IP or cellular networks. Gateways also support edge compute by aggregating data, converting it from analog to digital, and encrypting it before transmitting it over the network.
Digi XBee Ecosystem
Related
Details
Compact Detailed

Gateways

Digi IX15 IoT Gateway and Cellular Router

Digi IX15 IoT Gateway and Cellular Router

Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet

Add to compare

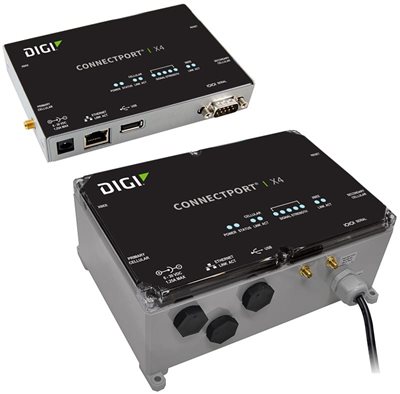

Digi ConnectPort X4 Gateway

Digi ConnectPort X4 Gateway

Remote M2M networking gateways designed for commercial grade and rugged outdoor applications

  • WAN connectivity via LTE or 3G HSPA+ Networks
  • Local wireless connectivity through Zigbee
  • Local wired connectivity through RS-232/422/485, 2 analog inputs and 2 digital inputs
  • Small commercial grade enclosure or NEMA 4X/IP66 case
  • Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption
  • Easy development environment via DIA and Python scripting as part of Digi ESP IDE
  • Support for Modbus/Modbus TCP
  • Digi Remote Manager® support for easy setup, mass configuration and management
Add to compare

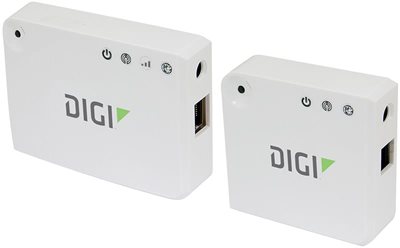

Digi XBee Zigbee Gateway Wi-Fi Hub

Digi XBee Zigbee Gateway Wi-Fi Hub

Programmable Zigbee gateway hub connects Digi XBee module devices to cloud-based applications and products over cellular, Wi-Fi or Ethernet

  • Open Source Python environment for custom application development on the gateway
  • Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee® networks
  • Secure, scalable access to an unlimited number of remote Digi XBee-based devices
  • Cellular, Wi-Fi and Ethernet WAN options for flexible broadband connectivity
Add to compare

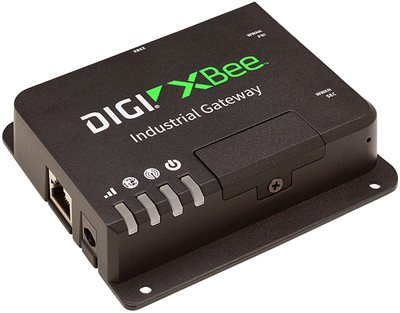

Digi XBee Industrial Gateway

Digi XBee Industrial Gateway

Programmable gateway connects Digi XBee enabled devices to remote applications over cellular or Ethernet

  • Open-source Python environment for custom application development on the gateway
  • Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee networks
  • ZigBee enabled for connection to local wireless devices
  • Cellular and Ethernet WAN options for flexible broadband connectivity
  • Can be deployed in any environment due to industrial temp range and rugged enclosure
Add to compare
Digi ConnectPort X2 Gateway

Digi ConnectPort X2 Gateway

Industrial-grade Digi XBee to IP gateways

  • Digi XBee® to Ethernet IP gateways support numerous Digi XBee protocols
  • Industrial-grade enclosures for rugged environments
  • Digi Remote Manager® for secure, scalable access to an unlimited number of remote assets and seamless web services integration from Digi gateways into customer back office applications
Add to compare

LoRaWAN

Digi HX15 Gateway for LoRaWAN®

Digi HX15 Gateway for LoRaWAN®

New

Flexible, modular gateway for indoor LoRaWAN IoT networks and applications

  • Simple gateway deployment for LoRaWAN and IoT applications
  • Capacity for up to 1.5 million messages per day
  • Modular design to support multiple frequency bands
  • Digi X-ON™ IoT configuration and management
  • Indoor enclosure for wall and table mounting
  • USB-C power supply
  • Scan-and-go provisioning with web-based mobile scanning app
  • Status LEDs for LoRa TX and RX, cellular signal strength, power
  • Optional LTE cellular connectivity (region-specific)
  • Micro (3FF) SIM included on LTE gateways
Add to compare
Digi HX20 Gateway for LoRaWAN®

Digi HX20 Gateway for LoRaWAN®

New

Rugged, modular gateway for outdoor LoRaWAN IoT networks and applications

  • Ruggedized IP67 industrial-rated enclosure
  • Simple gateway deployment for LoRaWAN and IoT applications
  • Capacity for up to 1.5 million messages per day
  • Modular design to support multiple frequency bands
  • Digi X-ON™ IoT configuration and management
  • High sensitivity receiver design for thousands of devices
  • GPS localizations (outdoor), pole mounting kit and antenna included
  • Scan-and-go provisioning with web-based mobile scanning app
  • Status LEDs for LoRa TX and RX, cellular signal strength, power
  • Optional LTE cellular connectivity (region-specific)
  • Nano (4FF) SIM included on LTE gateways
Add to compare

Modems

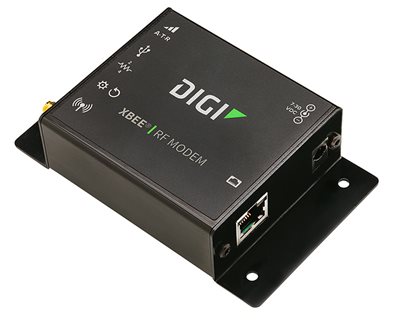

Digi XBee SX RF Modems

Digi XBee SX RF Modems

1-Watt industrial-grade 900 MHz RF modem with best-in-class range and power consumption for wireless cable replacement

  • Adjustable output power up to 1-Watt achieves up to 65 mile range*** with high gain antenna
  • Interfaces options include RS-232, RS-485, USB, Analog I/O and Digital I/O
  • DigiMesh® networking topology for redundancy and reliability
  • 256-bit AES encryption for secure data communications
  • Rugged metal enclosure and -40º C to 85º C operating temperature for industrial applications
  • Fully certified for use in free, unlicensed 900 MHz band
Add to compare
Digi XBee-PRO 900HP RF Modems

Digi XBee-PRO 900HP RF Modems

900 MHz stand-alone RF modems provide outstanding range (up to 28 miles)* in a reliable wireless solution

  • Industrial design with -40° C to 85° C operating temperature
  • Superior outdoor LOS range of up to 28 Miles*
  • RF data throughput up to 200 Kbps
  • 900 MHz license-free ISM band operation
  • Interface options include RS-232, RS-485, USB and Ethernet
  • DigiMesh® peer-to-peer mesh networking protocol
    • Self-healing and discovery for network stability
  • Includes mini-USB port for simnple device configuration
Add to compare
XTend<span>®</span> 900MHz RF Modems

XTend RF 900MHz Modems

1 Watt/900 MHz stand-alone radio modems

  • Outdoor line-of-sight range up to 40 miles* (with high gain antenna)
  • Outstanding receiver sensitivity (-110 dBm @9600 bps)
Add to compare
Play Watch the
Video

Digi IX15

Learn how the rugged, industrial-grade Digi IX15 gateway supports rapid deployment of XBee networks and provides a complete solution with Digi Remote Manager® for configuration and management, and built-in Digi TrustFence® security.
