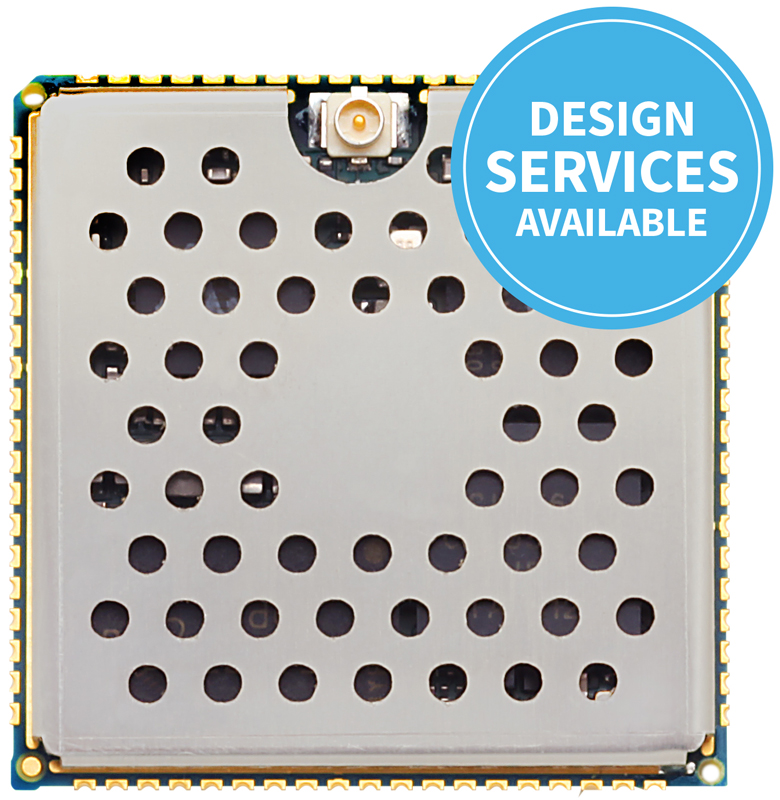

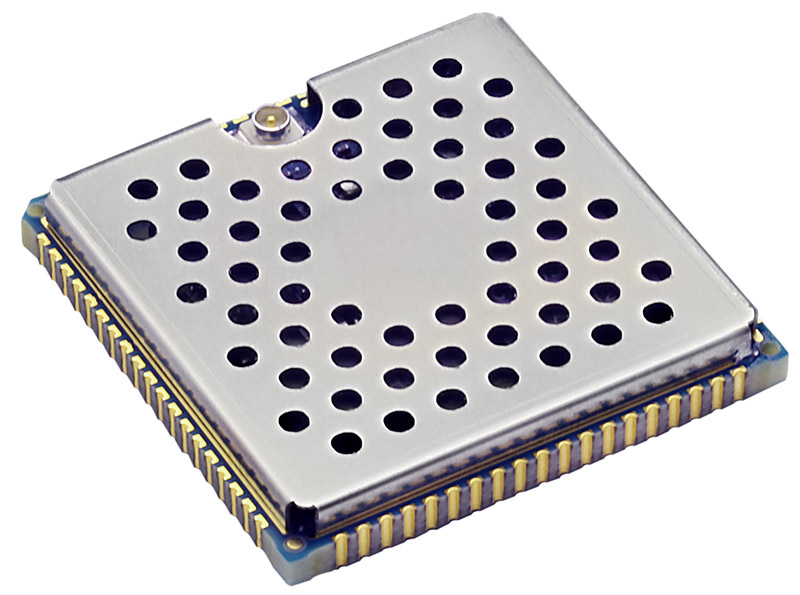

The Digi ConnectCore® 6UL module delivers a secure and extremely cost-effective connected System-on-Module platform that is slightly bigger than a postage stamp.
Its patent-pending Digi SMTplus™ surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces.
Built on the NXP i.MX6UL UltraLite application processor, the module is the intelligent communication engine for today’s secure connected devices. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.
Embedded device security is a critical design aspect for the growing number of connected applications (“IoT”) and the ConnectCore 6UL removes the implementation barriers by providing you with Digi TrustFence, a fully integrated secure module platform with complete Linux software support.
Digi ConnectCore Security and Cloud Services
Digi ConnectCore Security Services, Digi ConnectCore Cloud Services, Engineering Services and Expert Support provide additional capabilities for development, deployment and maintenance throughout the entire product lifecycle.
Smallest Size and Without Compromise
Smallest form factor. Lowest power. Wired or wireless. Pre-certified. The one i.MX6UL UltraLite SOM platform solution for all your connected devices.
Digi SMTplus™ for Design and Manufacturing Flexibility
Patent-pending Digi SMTplus form factor for optimized build/cost
- Ultra-compact size of 29 x 29 mm with reliable low-profile mounting
- Simplified and cost-optimized design and manufacturing flexibility
- 245-pad LGA (universal), or 76-pad (simple) castellated edge vias
- Reduced carrier board layer count for simpler applications
- No board connector cost, no board connector supply dependency
- Simplified edge castellations (~76) only,
or versatile LGA (~245 @ 1.27 mm pitch) for design flexibility
Designed for automated pick-and-place
- Highly cost-effective manufacturing in low and high volume applications
- Castellated edge vias also allow manual prototyping placement
Common footprint
- Highly cost-effective manufacturing in low and high volume applications
- Castellated edge vias also allow manual prototyping placement

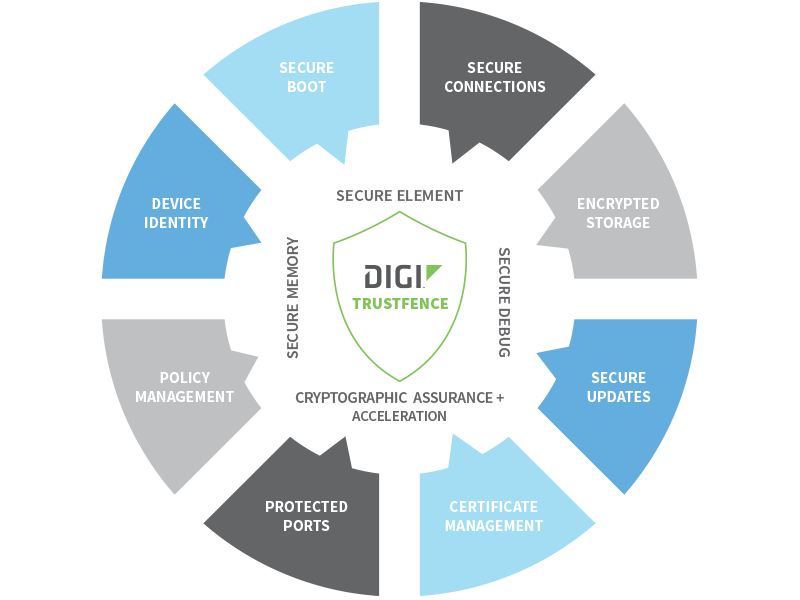

Build Secure Connected Embedded Devices Powered By Digi TrustFence
Device security is a critical design aspect for every connected device. The ConnectCore 6UL combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.
- Managed device security software framework
- U-Boot and Linux platform integration
- Transparent and future-proof architecture
- Zero implementation effort
Learn More
i.MX 6UltraLite
The most power efficient, lowest cost and smallest industrial i.MX6 family processor
Built on the NXP i.MX6UL application processor, the ConnectCore 6UL is the intelligent communication engine for today’s secure connected devices in industrial applications. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.
