Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 open collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation.

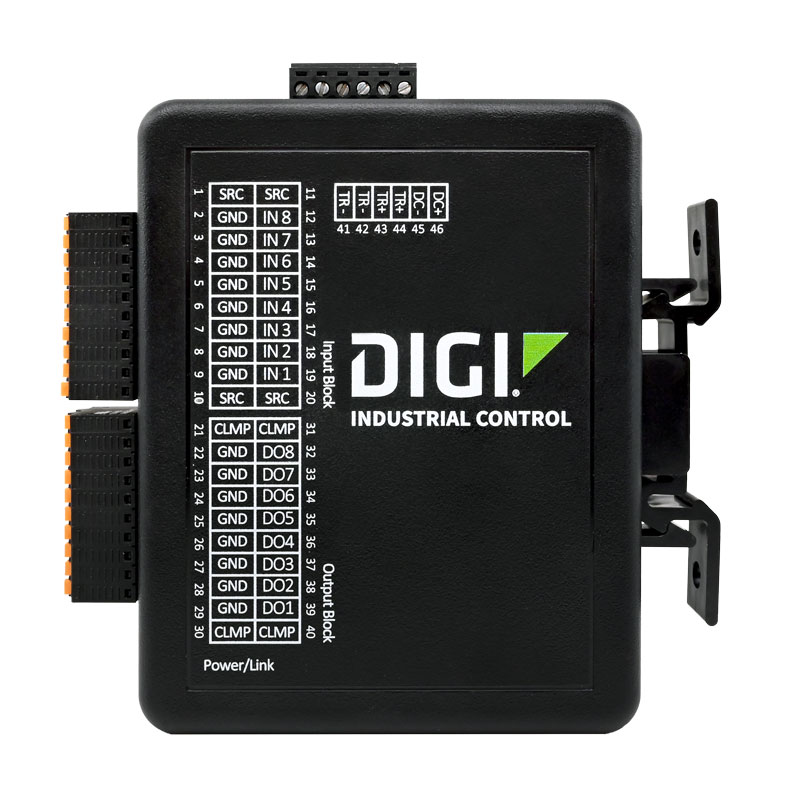

Digi Z1201 I/O Module
- RS-485, 2-wire interface
- 8 open collector outputs, 30 VDC max
- 8 multi-mode inputs, 30 VDC max
- Pulse counting
- Analog inputs
- Digital outputs
- Natively supports 0-5 V analog, digital and pulse inputs
- Extends to 0-10 VDC, 4-20 mA and 24 V sensors with external hardware
- Inputs: 20 VDC maximum input voltage; 512 Hz sample rate
- Measurement input voltage: 0-5 VDC
- Maximum input voltage: 5.5 VDC
- Power: 9-24 VDC input (external source), 100 mA consumption (excluding active inputs
- Operating temperature: −30 °C to 70 °C (−22 °F to 158 °F)
- TAA Compliance: This product is compliant with the U.S. Trade Agreements Act (TAA) based on its current country of origin and manufacturing configuration. Compliance status is subject to change. Customers should contact Digi International to obtain the latest TAA Compliance Statement.
What's in the box?
- Digi Z1201 Multifunction I/O Controller
