Digi XBee XR 868 MHz, DigiMesh, RF pad, SMT

Related to: Digi XBee XR 868

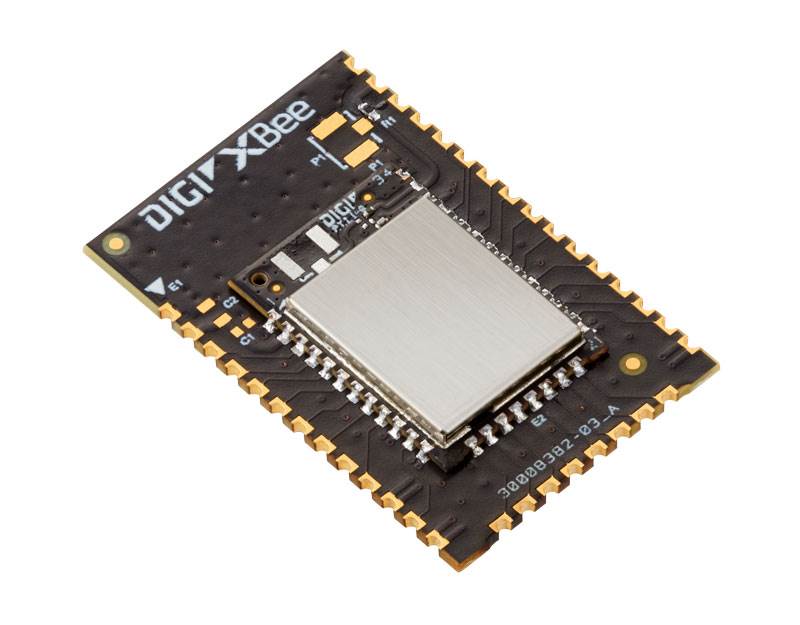

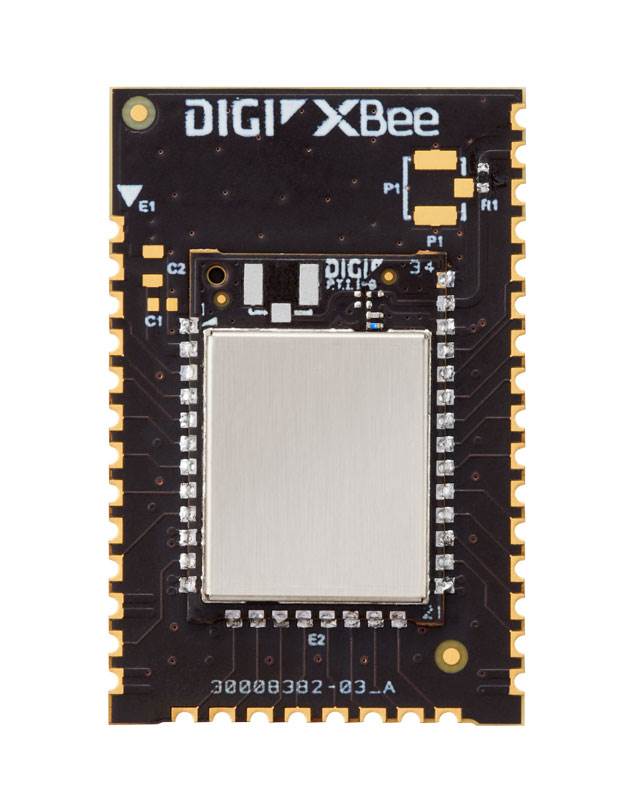

Digi XBee XR 868 SMT RF pad Digi XBee XR 868 SMT RF pad front
Coming soon
Part Number:

XB-8XR-DMRS-101

View Purchase Options
View accessories Download DatasheetDownload datasheet Checkmark iconProduct Certifications Contact us

Digi XBee XR 868

  • Digi XBee XR 868 MHz, DigiMesh, RF pad, SMT
    • Processor: EFR32FG13P231F512 transceiver at 40 MHz
    • Frequency band: 863 MHz – 870 MHz
    • Dimensions: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in) for SMT
    • Weight: 3.0 g (0.106 oz) for SMT
  • Features:
    • I/O: 13 digital I/O
    • Analog inputs: 4 channels 10-bit
    • Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F), temperature compensated crystal oscillator
    • Networking topologies: DigiMesh®, repeater; SX protocol compatible
    • Security: 256-bit AES encryption
  • Performance:
    • RF data rate: 10 kbps or 80 kbps, software selectable
    • UART data rate: up to 921.6 kbps
    • SPI data rate: up to 5 Mbps
    • Line-of-sight range*: up to 14.5 km with 2.1 dBi antenna
    • Transmit power: up to 13 dBm ERP
    • Receiver sensitivity: −107 dBm at 80 Kbps, −112 dBm at 10 Kbps
  • Power:
    • Supply voltage: 2.1 - 3.6 VDC
    • Transmit current: 76 mA
    • Receive current: 26 mA
    • Sleep current: 1.5 uA
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
