| SOFTWARE |
| REMOTE MANAGEMENT |
Digi Remote Manager® |
| PROTOCOLS |
USB 2.0 / 3.0 (CM module’s interface), UMTS, EVDO, HSPA+, LTE, LTE-A, LTE-A Pro (supported cellular protocols vary by module type) |
| SECURITY |
Tamper-proof with internal SIM slots and optional locking mechanism |
| PHYSICAL |
| DIMENSIONS (L x W x H) |
102 mm x 51 mm x 15 mm (4.0 in x 2.0 in x 0.6 in) |
| WEIGHT |
0.156 kg (5.5 oz) |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE |
Commercial temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Industrial temperature: −40 °C to 70 °C (−40 °F to 158 °F) |
| STORAGE TEMP AND HUMIDITY |
−45 °C to 75 °C −49 °F to 167 °F); 5% to 95% non-condensing |
| APPROVALS |
| EMISSIONS / IMMUNITY |
FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B) |
| CELLULAR SPECIFICATIONS |
| CELLULAR ANTENNA |
(1, 2, 3 or 4) Dipole; frequency: 700-960/1575-2700 hz; gain: 1-4 dBi |
| SIM |
(2) SIM card slot (size 2FF), software selectable and hardware switchable |

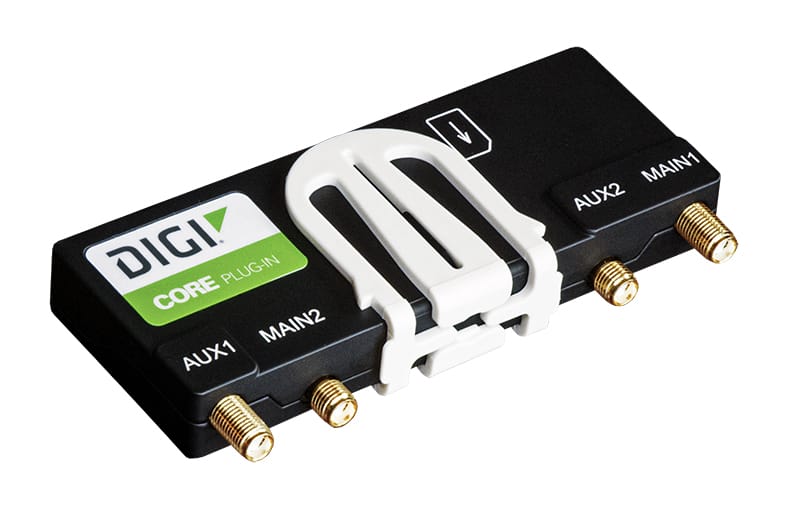

| DIGI CORE PLUG-IN LTE MODEM* |
| DIGI CORE 1002-CMM1 (NORTH AMERICA) |
LTE Cat M1 / NB1; LTE Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28; 2G (EGPRS): 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): M1: 300 kbps down, 375 kbps up; NB1: 21 kbps down, 62.5 kbps up; 2G: 296 kbps down, 236 kbps up; Industrial temperature |
| DIGI CORE 1002-CMF4 (NORTH AMERICA) |
LTE Cat 4; LTE Bands: B2, B4, B5, B12, B13, B14 FirstNet®, B66, B71; 3G: B2, B4, B5; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature |
| DIGI CORE 1002-CMG4 (GLOBAL) |
LTE Cat 4; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature |
| DIGI CORE 1002-CMG4-G (EMEA) |
LTE Cat 4; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature |
| DIGI CORE 1002-CM45 (EMEA) |
LTE Cat 4; LTE Bands: B3, B7, B20, B31, B72; 450 MHz support; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature |
| DIGI CORE 1003-CM07 (NORTH AMERICA) |
LTE-Advanced Cat 7; LTE Bands: B2, B4, B5, B7, B12, B13, B14 FirstNet®, B25, B26, B41, B42, B43, B48, B66, B71; 3G: B2, B5; Transfer rate (max): 300 Mbps down, 150 Mbps up; Industrial temperature |
| DIGI CORE PLUG-IN LTE MODEM WITH GNSS SUPPORT* |
| DIGI CORE 1003-CM07 (NORTH AMERICA) AND DIGI CORE 1002-CMG4-G (EMEA) |
GPS, GLONASS, BeiDou, Galileo, QZSS; Connector: 50 Ω SMA (center pin: female); Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s |
