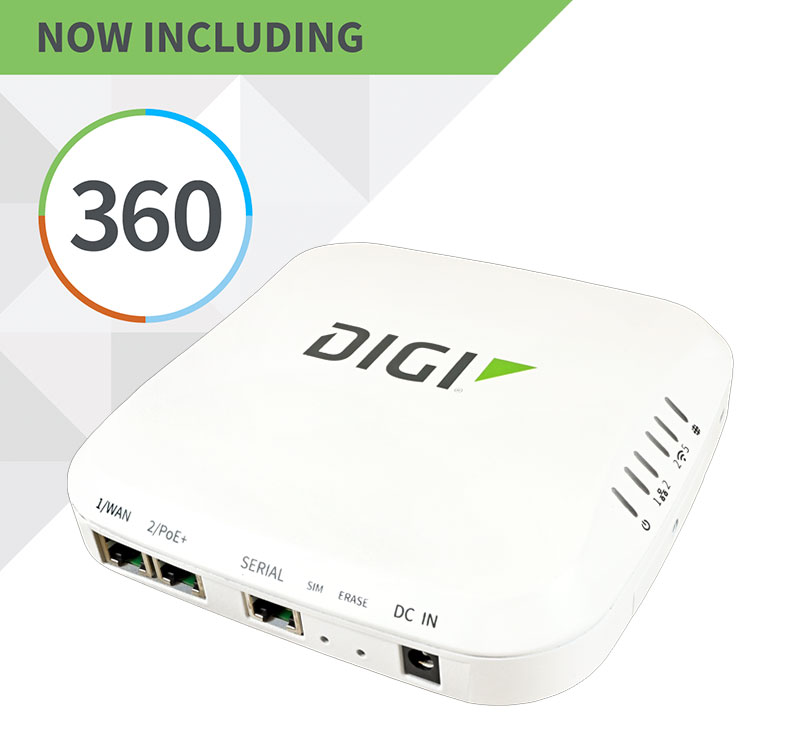

Digi EX50 5G Cellular Router

Now with Digi 360

5G go-to enterprise solution for primary or backup wireless connectivity


  • Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR
  • High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity CBRS, C-band, FirstNet Capable™ cellular radio
  • Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet
  • Active PoE+ switch or DC IN for primary and backup power
  • Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
  • Extended operating temperature range for wider use-cases
  • Standards-based Power over Ethernet simplifies installation
  • Multiple mounting options and accessories
  • Serial port for remote, out-of-band management
  • Full-featured enterprise and industrial cellular routing platform
  • Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • Value-added services include Digi Containers to enable powerful, cost-efficient applications and Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover

Business has forever changed with millions of employees working remotely. The Digi EX50 5G cellular router with 5G/4G dual connectivity provides your business with a fast, secure and resilient enterprise-grade network that changes the work-from-anywhere experience for good — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution.

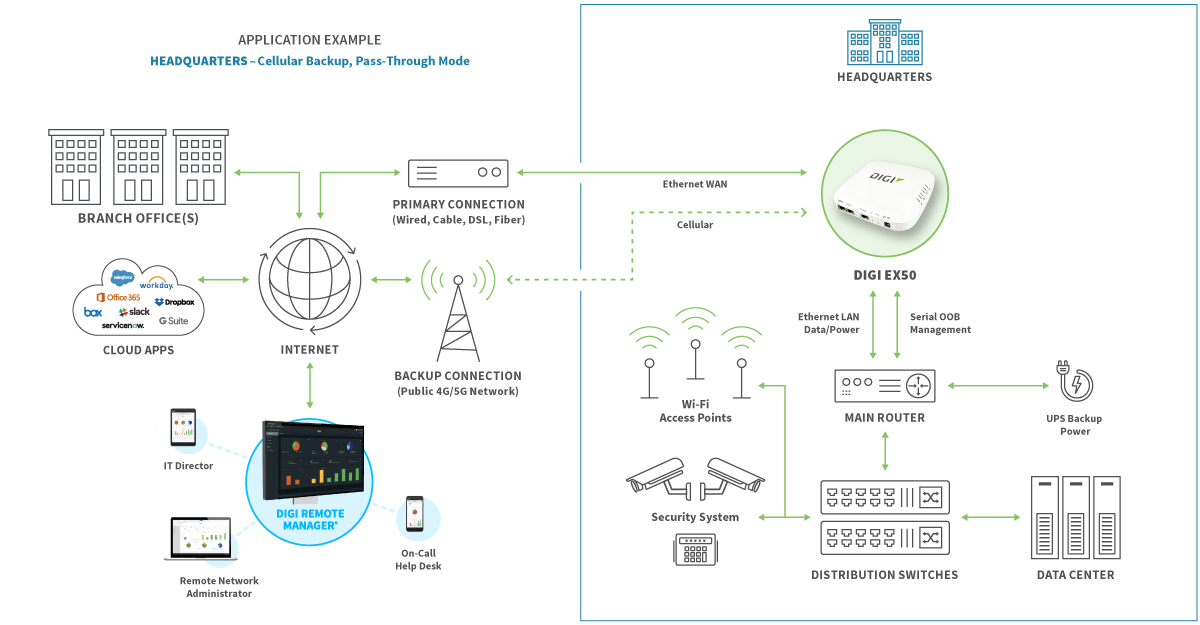

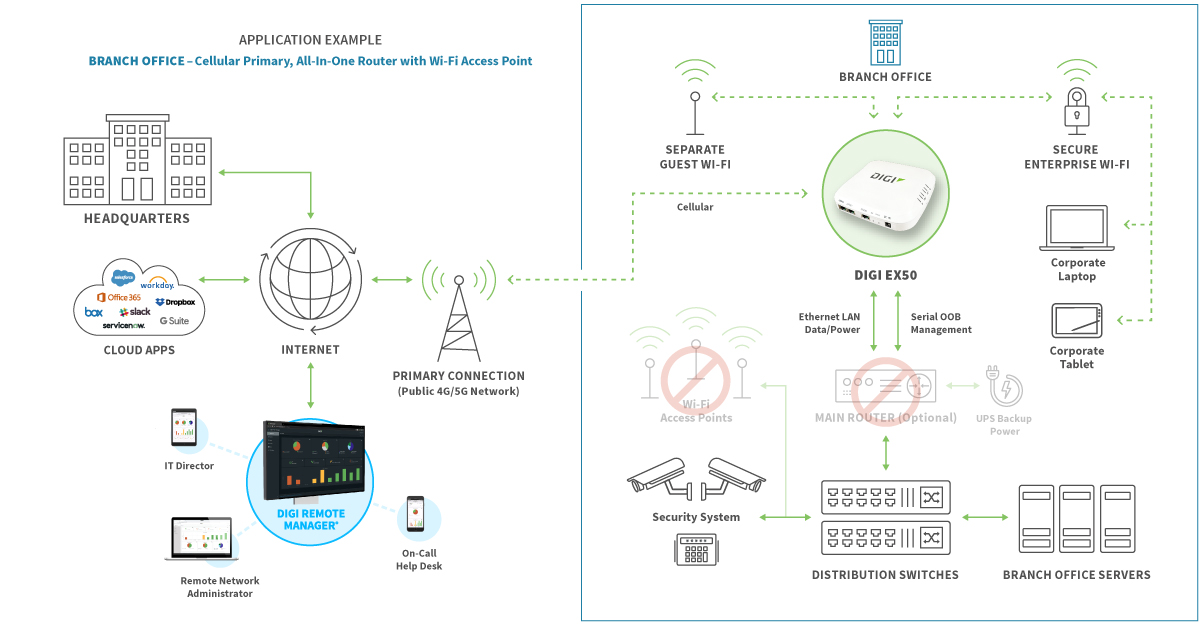

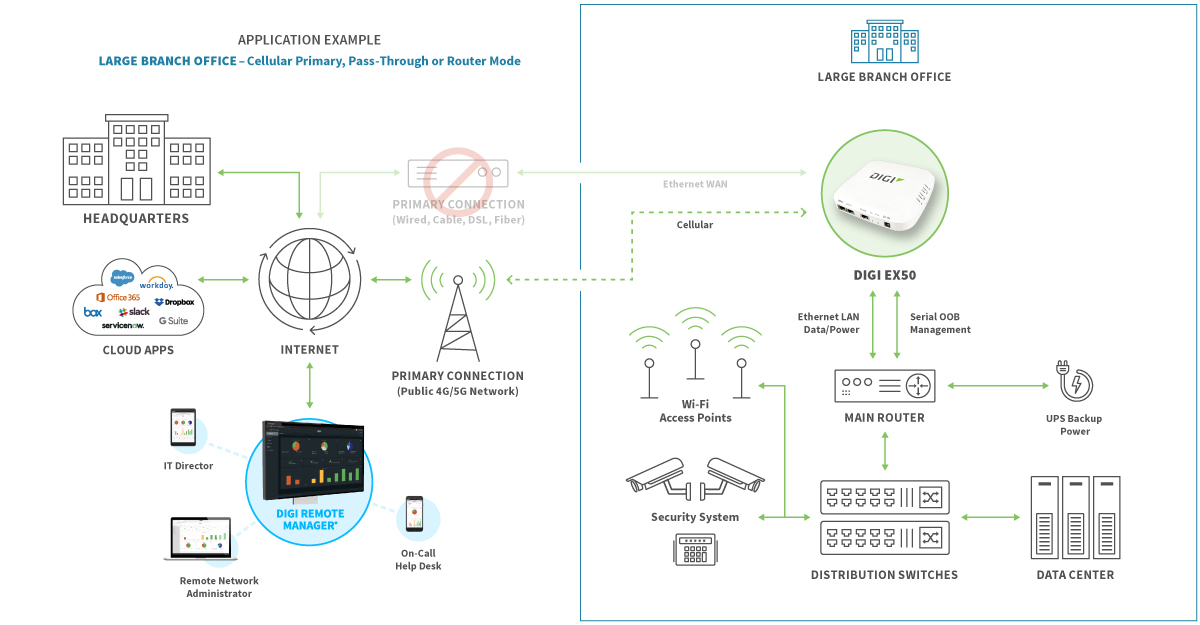

Digi EX50 is an ideal choice for your business as you adapt to the new normal. The small form factor of Digi EX50 makes it the 5G go-to enterprise solution where the work is happening: at the headquarters for backup connectivity, at the branch for cost-optimized primary connectivity, or at the IT-managed home office for secure, all-in-one connectivity with Wi-Fi.

Part of Digi enterprise solutions, this router comes with industry-leading software, including Digi Accelerated Linux (DAL OS), Digi TrustFence® security framework, and the Digi RM configuration and management platform. These tools deliver security, reliability and system-wide management of your entire infrastructure.

Dual-SIM slots provide carrier flexibility and wireless failover, and with 4G LTE and 3G fallback, you're covered in areas where 5G is not yet deployed. The latest generation Wi-Fi 6 radios in the Digi EX50 router operate simultaneously for higher speed, capacity, quality of service and range than previous Wi-Fi products. Dual 2.5 Gigabit Ethernet ports break the Gigabit barrier and deliver 5G speeds for future-ready networks.

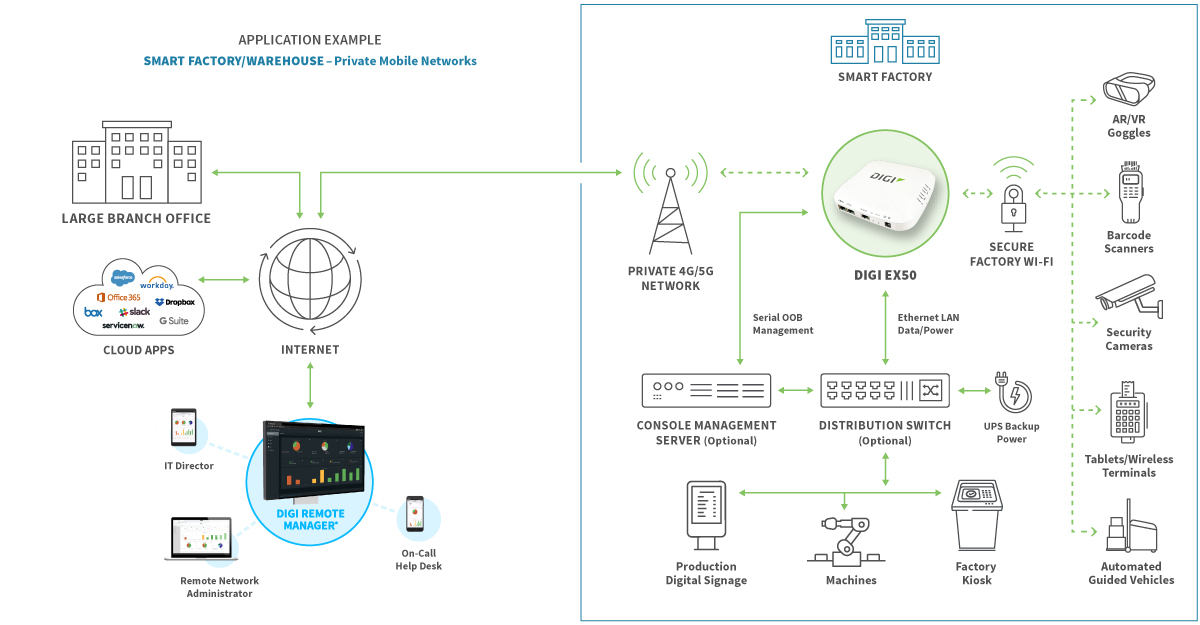

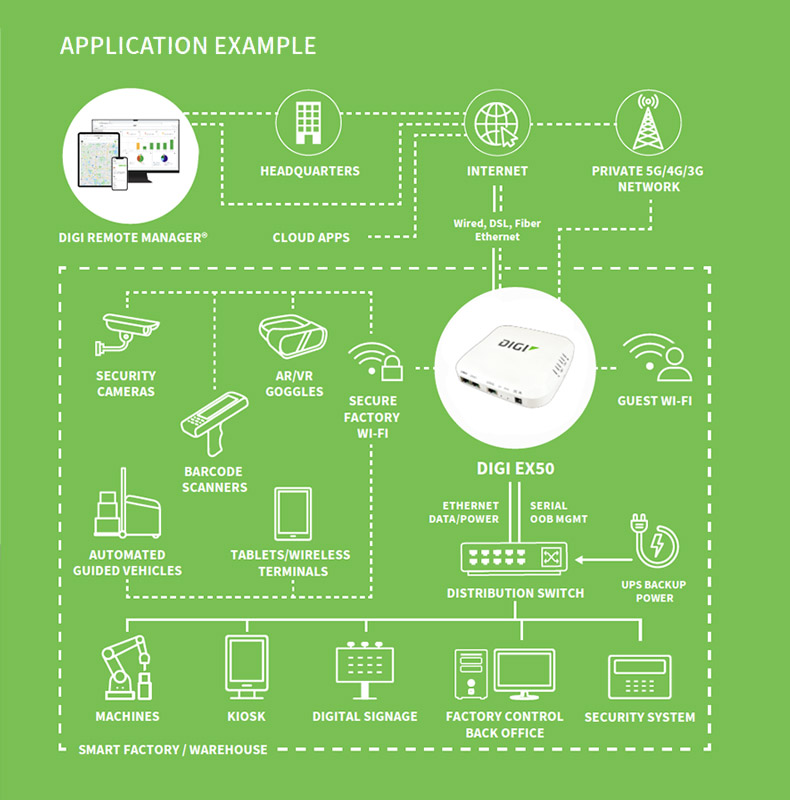

Digi EX50 supports indoor use-cases with an extended operating temperature range, such as smart factories, warehouses, construction sites or infrastructure sheds. Digi EX50 also supports CBRS, C-band and FirstNet® for additional flexibility and use-cases including critical communications. Digi EX50 5G cellular routers also meet the U.S. government FIPS 140-2 cybersecurity standard.

An available serial port with Cisco straight-through pinout enables secure out-of-band management of other on-site equipment. To simplify installation, Digi EX50 can be directly powered by an active PoE+ switch or a DC IN barrel connector as the primary or backup power source for redundancy.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More

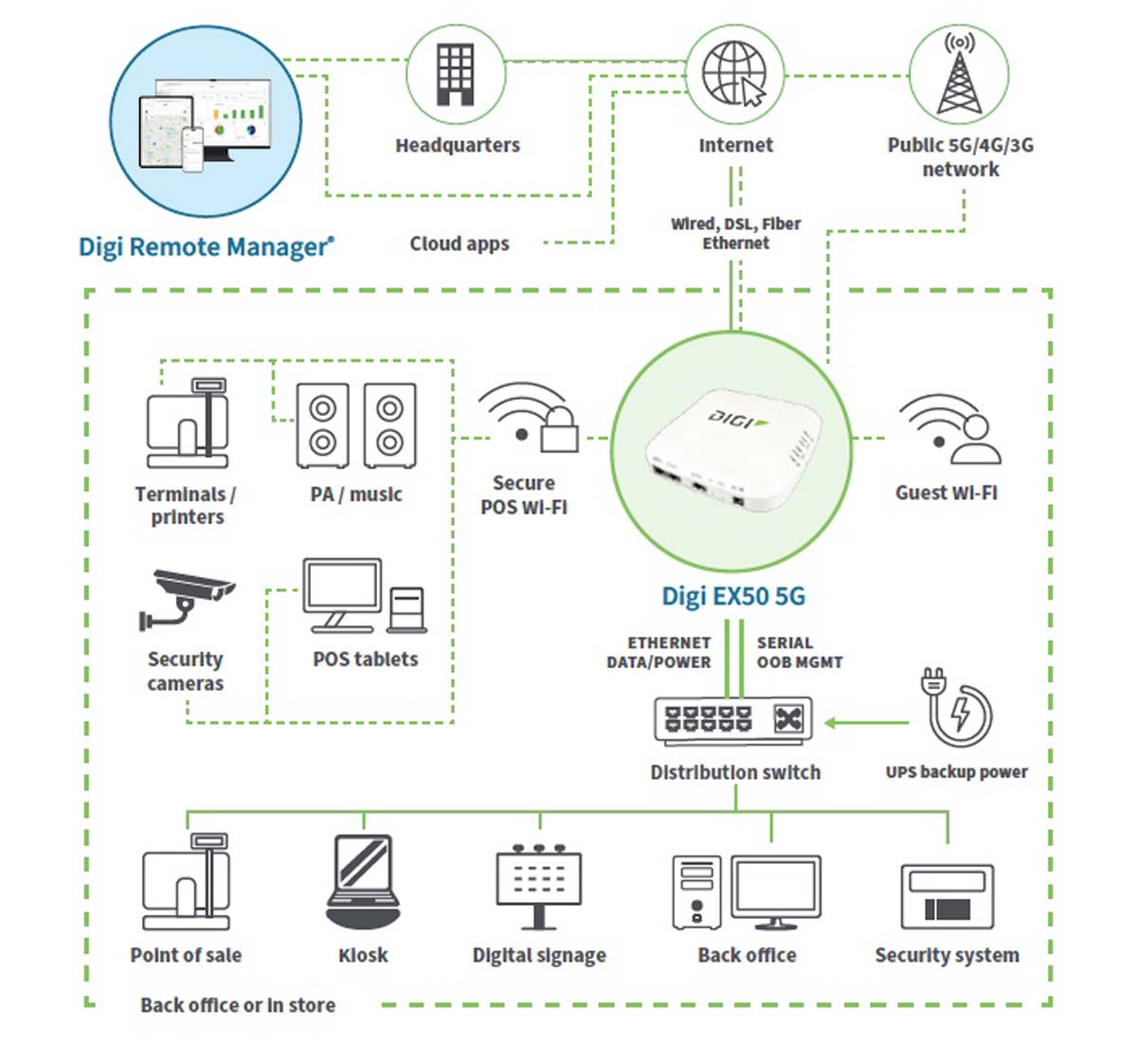

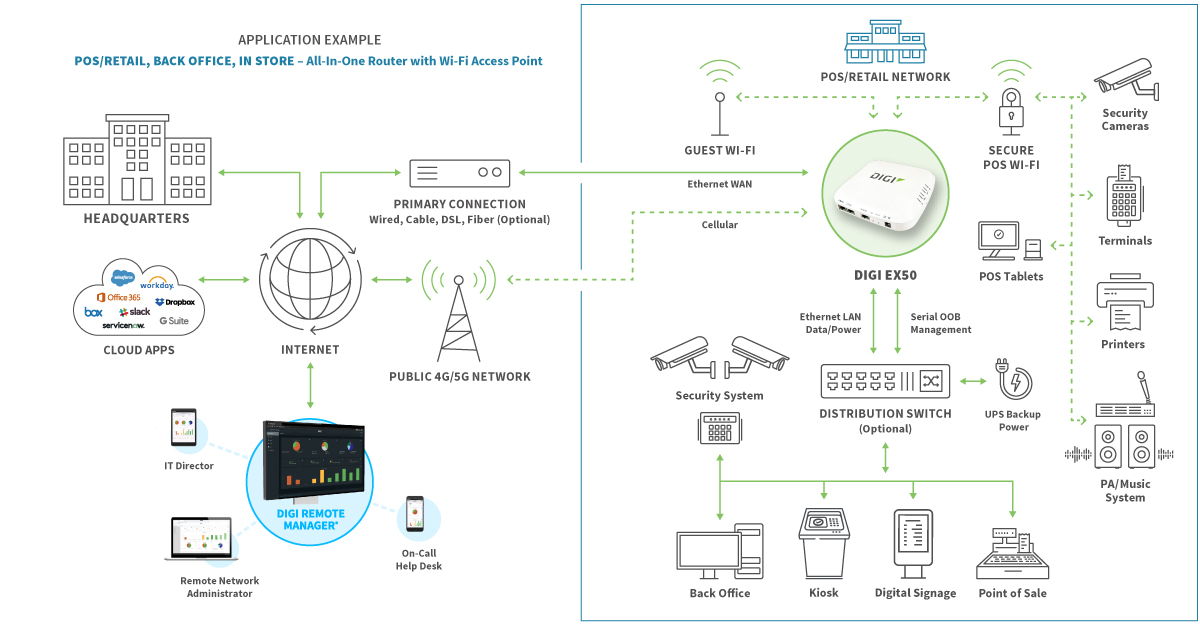

Go-To 5G Connectivity

for the New Age of Retail

Tap into 5G speed and capacity to support unique shopping environments and experiences. Meet Our 5G Solutions

Compare Enterprise Cellular Routers/Extenders

Compare Enterprise Cellular Routers/Extenders
Digi EX50 5G with Digi 360
SKU: EX50-WXS6-GLB Digi EX50 — Global, 5G NR Sub-6 GHz with 4G/3G fallback
  • Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous 2x2 MIMO
  • Ethernet: dual 2.5 GbE RJ-45
  • Serial: RS-232 (RJ-45); Cisco straight-through pinout
  • Includes DC power supply, mounting hardware, Ethernet cable, serial cable and antennas
EX50-WXS6-GLB How to Buy
Available Accessories
SKU: 76002153 Digi EX50 UK power cord 76002153 How to Buy
SKU: 76002154 Digi EX50 EU power cord 76002154 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-EX50-EXT-2YR Digi 360 extension for two additional years for Digi EX50 DIGI360-EX50-EXT-2YR How to Buy
SKU: DIGI360-EX50-EXT-4YR Digi 360 extension for four additional years for Digi EX50 DIGI360-EX50-EXT-4YR How to Buy
SKU: DIGI360-EX50-REN-1YR Digi 360 renewal for one additional year for Digi EX50 DIGI360-EX50-REN-1YR How to Buy
SKU: DIGI360-EX50-REN-3YR Digi 360 renewal for three additional years for Digi EX50 DIGI360-EX50-REN-3YR How to Buy
SKU: DIGI360-EX50-REN-5YR Digi 360 renewal for five additional years for Digi EX50 DIGI360-EX50-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections
  Get Started
SPECIFICATIONS Digi EX50 5G with Digi 360*
CELLULAR CONNECTIVITY**
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79
4G LTE-ADVANCED PRO Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71
3G HSPA+ Bands: B1, B2, B4, B5, B6, B8, B9, B19
ANTENNA CONNECTORS (4) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate
SOFTWARE AND MANAGEMENT*
SOFTWARE Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
REMOTE MANAGEMENT Digi Remote Manager; security, management, updates, alerts, scheduling and intelligence
LOCAL MANAGEMENT Web Interface (HTTPS); Command Line Interface (SSH, serial port)
PERFORMANCE
ETHERNET THROUGHPUT 2.5 Gbps
CELLULAR THROUGHPUT 1.4 Gbps
IPSEC VPN THROUGHPUT 500 Mbps
VPN TUNNELS 10 tunnels
CLIENT COUNT 256 clients (typical)
PROCESSOR
APPLICATION PROCESSOR ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
MEMORY 512 MB RAM, 512 MB flash
ETHERNET
PORTS (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
WI-FI
RADIOS Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
ANTENNAS Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain
SECURITY Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise
MODES (4) Wi-Fi access points; (2) Wi-Fi clients; (256) Wi-Fi users (typical)
SERIAL
PORTS (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network appliances and servers
PHYSICAL
DIMENSIONS (L x W x H) 158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in)
WEIGHT 600 g (21 oz)
STATUS LEDs (14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2
ENCLOSURE Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot
POWER REQUIREMENTS
DC BARREL INPUT 19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive
POWER OVER ETHERNET Standards-based, IEEE 802.3at, PoE+ (25.5 W)
POWER CONSUMPTION 8 W (idle), 15 W (typical), 25 W (maximum)
ENVIRONMENTAL
OPERATING TEMPERATURE -30 °C to 60 °C (-22 °F to 140 °F) with Power over Ethernet or industrial-rated power supply; 0 °C to 40 °C (32 °F to 104 °F) with included commercial-rated power supply
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS**
CELLULAR Visit product certifications for latest approvals and updates
EMISSIONS / IMMUNITY CE; RED; FCC Part 15 Subpart B; CAN ICES-003
SAFETY IEC62368-1, CB, EN62311
WARRANTY***
PRODUCT WARRANTY 1-year
*Includes the Digi 360 solution for Digi EX50 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.
