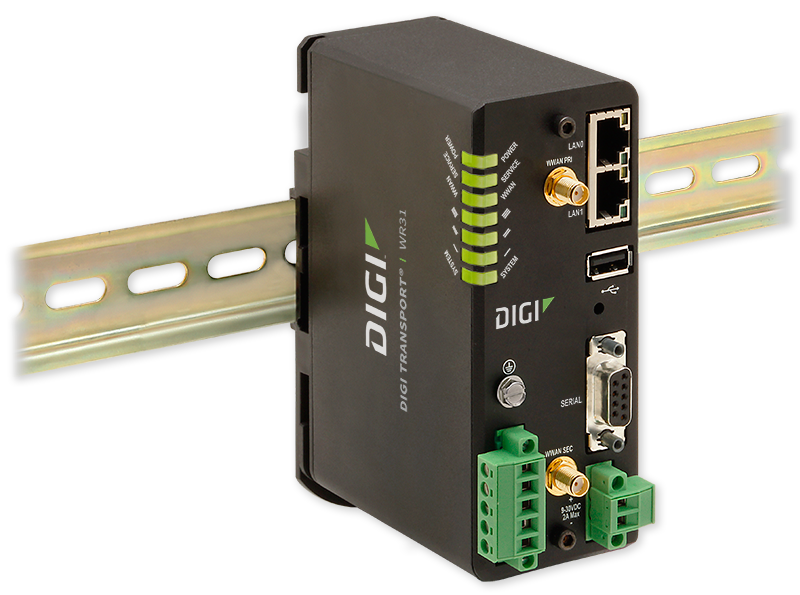

Digi WR31

NRND Recommended replacement: Digi IX30

Intelligent 4G LTE router designed for critical infrastructure and industrial applications


  • Global HSPA+ and 4G LTE support and certification on major carrier networks around the world
  • Ethernet, serial I/O and Modbus bridging
  • Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots

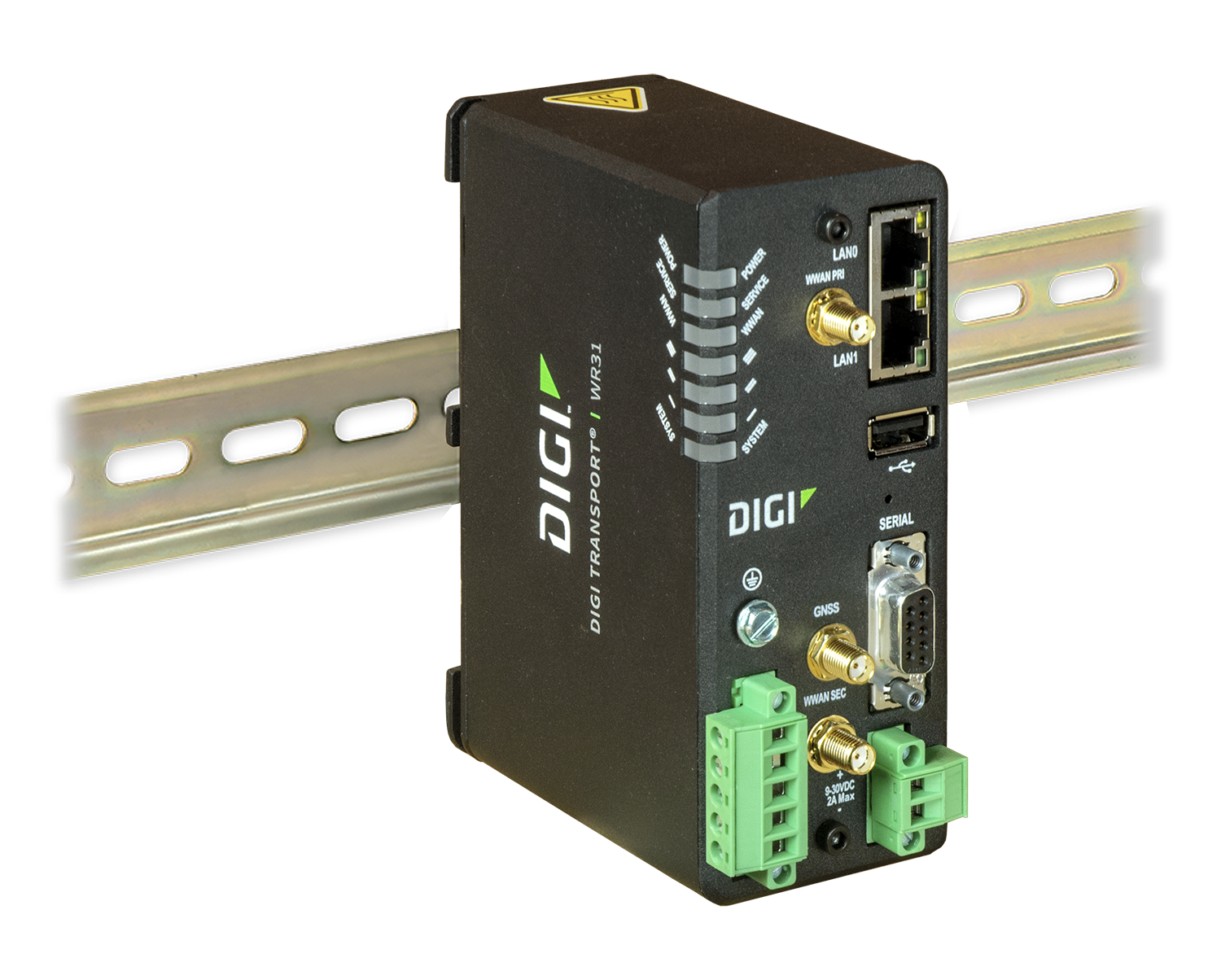

  • Dedicated GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
  • License-free enterprise software: VPN, firewall, logging and authentication
  • Digi Remote Manager® platform for easy setup, mass configuration and management
  • Rugged enclosure, optimized for DIN rail or shelf mounting
  • C1D2 and ATEX rated; NEMA TS2 temperature rated
  • Migrating from a WR-series device? Get information and tools to setup your new IX-series router.

Digi TransPort WR31 is an intelligent 4G LTE router designed for performance and reliability across a range of critical infrastructure and industrial applications. It provides a secure, reliable connection to industrial controllers, process automation equipment and smart grid assets on third party sites or remote locations. Software-defined, multi-carrier networking and global LTE and HSPA+ options make it easy to get connected. This drop-in connectivity gives operators a way to reduce downtime and service calls, and also increase revenue by bringing distributed sites online faster.


Ideal for Connecting:

  • Wayside rail infrastructure (network, sensors, PTC assets)
  • Building and process automation controllers
  • Smart grid assets (meters, switches, controllers)
  • IP cameras and access controllers
  • Remote data loggers, flow meters and sensing equipment
  • Telco infrastructure
  • Traffic and obstruction lighting

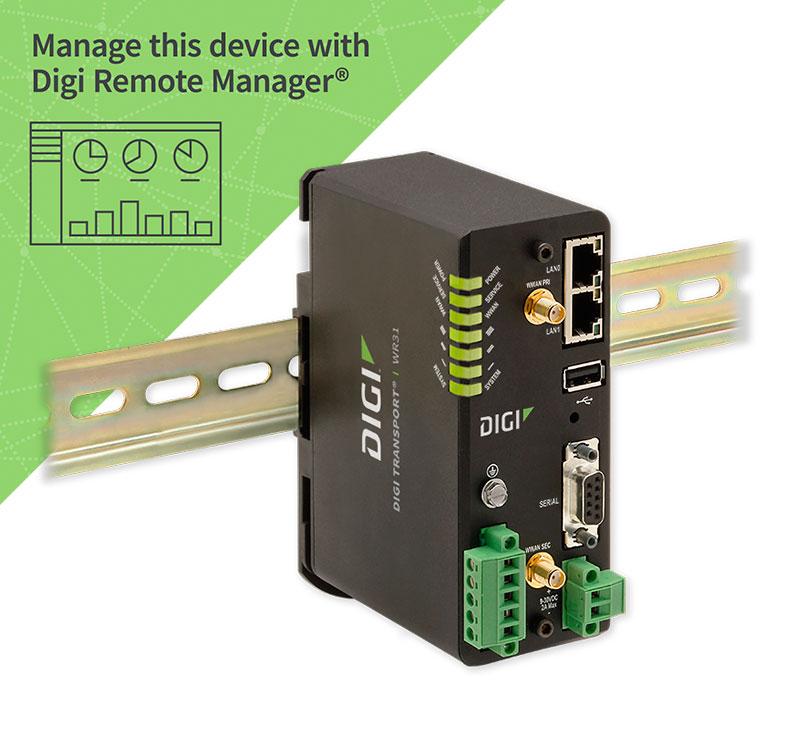

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

Badge

2G/3G Shutdowns: Plan Ahead to Stay Ahead

The shutdowns are coming sooner than you’d like. And Digi is here to help you plan ahead to avoid disruptions, lost data and – even worse – lost revenue. Digi LTE Migration Services is standing by with everything to make things go smoothly and quickly. What you need. Just in time.

Beat the 2G/3G Shutdown
* For qualifying projects

Compare Industrial Routers

Compare Industrial Routers

Related Products

SPECIFICATIONS Digi TransPort WR31
WIRELESS INTERFACES
CELLULAR
CERTIFICATIONS Visit https://www.digi.com/resources/certifications for latest certifications
LTE – ANZ/LATAM (L9) LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/
2600(B7,B38)/2300(B40)/2500(B41)
3G HSPA+: 800/850/900/1700/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking
LTE – NORTH AMERICA/EMEA (M8) LTE-Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/
2100(B1)/2300(B30)/2500(B41)/2600(B7)
3G HSPA+: 850/900/AWS/1800/1900/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking
LTE – NORTH AMERICA (M5) LTE Cat 4: 700(B12,13)/850(B5)/AWS(B4)/1900(B2)
3G HSPA+: 850/1900 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE – EMEA/APAC (M7) LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE 450 – EMEA/APAC (M2) LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up
GLOBAL HSPA+ (U9) 3G HSPA+: 850/900/1700AWS/1900/2100 MHz
2G EDGE/GPRS: 850/900/1800/1900 MHz
Transfer rate (max): 21 Mbps down, 5.76 Mbps up
CDMA EV–DO 450 MHZ – EMEA (D5) 3G EVDO Rev B: 450 MHz
2G 1XRTT: 450 MHz
Transfer rate (max): 14.7 Mbps down, 5.4 Mbps up
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Screw-down SIM cover
GNSS (SELECT MODELS) Protocol NMEA 0183 V3.0
Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s
Accuracy Horizontal: < 2 m(50%), < 5 m(90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
SOFTWARE & MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS)
MANAGEMENT/ TROUBLESHOOTING TOOLS FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
WIRED INTERFACES
ETHERNET
PORTS (2) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) DB-9; DCE
STANDARD RS-232/422/485
SIGNAL SUPPORT TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
FLOW CONTROL Software (XON/XOFF), hardware supported
I/O
CONNECTOR 5-pin screw down terminal block
DIGITAL 0-30 VDC, 200 mA max.; (2) I/O, software selectable
ANALOG (1) analog I/O; 4-20 mA or 0-10 V, software selectable; 12 bit resolution
USB
PORTS (1) USB 2.0 Type A
PHYSICAL
DIMENSIONS (L X W X H) 12.7 cm x 8.9 cm x 5.1 cm (5 in x 3.5 in x 2 in)
WEIGHT .5 kg (1.1 lb.)
STATUS LEDS Power, service, WWAN, 3x signal strength, user programmable
ENCLOSURE/RATING Aluminum / IP30
MOUNTING DIN rail mount included
POWER REQUIREMENTS
POWER INPUT 9 – 30 VDC, 18 W min power source required
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 4 W typical (Idle); 12 W typical (Peak Tx/Rx)
ENVIRONMENTAL
HAZARDOUS (CLASS 1 DIV 2) Yes
OPERATING TEMPERATURE -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 185° F)
ETHERNET ISOLATION 1.5 kV RMS
SERIAL PORT PROTECTION (ESD) 15 kV
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR PTCRB
SAFETY Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15
Ordinary locations: UL 60950-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition
ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
IECEX STANDARDS US/UL/ExTR17.0077/00
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
WARRANTY
PRODUCT WARRANTY 3-year*
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.


Line Art

ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, Open VPN client and server; PPTP, L2TP; (5) VPN tunnels (not upgradable); cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN
OTHER PROTOCOLS DDHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; protocol switch; Modbus bridging for connecting diverse field assets
