Digi XBee RR DigiMesh 2.4 RF Module

Kits now available

Easy-to-add DigiMesh 2.4 RF connectivity in a compact, low-power, low-profile footprint


  • Size and Flexibility
    • At 13 mm x 19 mm, the new Digi XBee® RR micro form factor allows for more compact and portable applications
    • Digi XBee RR is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE (slave only), all configurable via Digi XCTU® and the Digi XBee Mobile App
  • Security and Management
    • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
    • Connect Digi XBee RR with the Digi IX15 IoT gateway and router to configure, monitor and control your network with Digi Remote Manager®

Digi XBee RR DigiMesh 2.4 RF wireless modules accelerate time-to-market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee RR wireless modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee RR offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others.

From edge computing to future migration, Digi XBee RR wireless modules offer size, weight, power and performance advantages ideal for scalable device connectivity, security and flexibility.

Digi Remote Manager offers a central, cloud-based platform for configuring, monitoring and controlling your entire Digi XBee RR wireless network, via a gateway, as shown in the application example.

Built-in Digi TrustFence security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. The Digi XBee Mobile App and Digi XCTU simplify local setup, configuration, testing and adding or changing functionality.

A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee RR Series offers a complete solution engineered to accelerate development and deployment.

Digi IX15

Learn how the rugged, industrial-grade Digi IX15 gateway supports rapid deployment of XBee networks and provides a complete solution with Digi Remote Manager® for configuration and management, and built-in Digi TrustFence® security.

Contact a Digi Expert
Digi XBee Ecosystem

Explore the Digi XBee Ecosystem

Digi XBee is more than a module. It's a complete ecosystem of RF modules, gateways, adapters, and software, all engineered to accelerate wireless development for global deployments. One socket allows you to connect to IoT networks around the globe. With the authentic Digi XBee footprint, you can future-proof your design and know that Digi has you covered for new technologies as they emerge.

Digi XBee Ecosystem

Digi XBee Mobile App


Digi XBee Mobile App

Connect your mobile device to your Digi XBee 3 modules wirelessly using the Digi XBee Mobile App. Deploy or develop an application straight from the field. Take the app with you wherever you go for easy access to your modules' parameters. Download the app on Android or IOS today.

Google Play App Store


XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More

Compare Digi XBee

Compare Digi XBee
Digi XBee RR Development Kit
SKU: XKRR-Z8S-WZM Now available
Digi XBee RR Development Kit
XKRR-Z8S-WZM How to Buy
Digi XBee RR PRO Zigbee RF wireless modules
SKU: XBRR-24DMUM Digi XBee RR PRO, 2.4 GHz, DigiMesh, U.FL Ant, MMT XBRR-24DMUM How to Buy
SKU: XBRR-24DMRM Digi XBee RR PRO, 2.4 GHz, DigiMesh, RF Pad Ant, MMT XBRR-24DMRM How to Buy
SKU: XBRR-24DMCM Coming soon
Digi XBee RR PRO, 2.4 GHz, DigiMesh, chip antenna, MMT
XBRR-24DMCM Contact Us
Digi IX15 IoT Gateways
SKU: IX15-00G4-XB2 Digi IX15 - XBee 3
  • Digi XBee® 3 Zigbee 3.0 MMT
  • LTE Cat 4
  • Regions: EU, UK, Japan
  • (1) Ethernet
  • RS-232/485
  • Accessories not included
IX15-00G4-XB2 How to Buy
SKU: IX15-00G4-XBP2 Digi IX15 - XBee 3 PRO
  • Digi XBee® PRO Zigbee 3.0 MMT
  • LTE Cat 4
  • Regions: Americas
  • (1) Ethernet
  • RS-232/485
  • Accessories not included
IX15-00G4-XBP2 How to Buy
Services
Digi XBee® Rapid Redesign Services   Get Started
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
SPECIFICATIONS Digi XBee RR DigiMesh 2.4 RF Module Digi XBee RR PRO DigiMesh 2.4 RF Module
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
DATA RATE RF 250 Kbps, serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 60 m (200 ft) Up to 90 m (300 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 1200 m (4000 ft) Up to 3200 m (2 miles)
TRANSMIT POWER 6.3 mW (+8 dBm); channel 26 max power: +3 dBm 79 mW (+19 dBm); channel 26 max power: +3 dBm
RECEIVER SENSITIVITY (1% PER) −103 dBm normal mode
BLUETOOTH® PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
BLE VERSION Supports Bluetooth Low Energy (BLE) 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release).
MAXIMUM DATA RATE 1 Mbps
INDOOR/URBAN RANGE* Up to 15 m (49 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 300 m (984 ft)
TRANSMIT POWER +8 dBm
RECEIVER SENSITIVITY (1% PER) −95 dBm normal mode
FEATURES
SERIAL DATA INTERFACE UART, SPI
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Micro, through-hole, surface mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 13

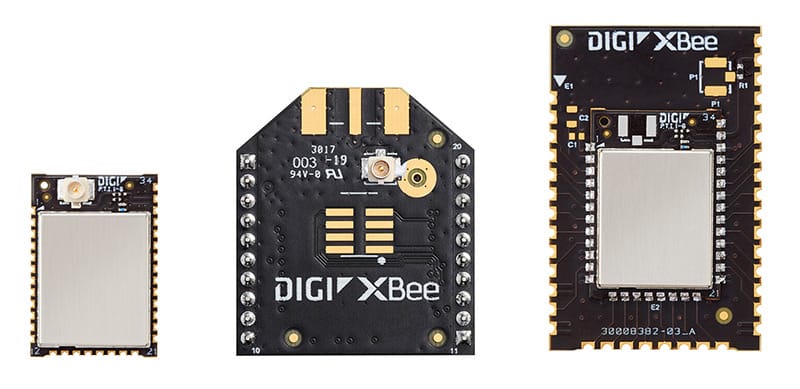

ANTENNA OPTIONS Through-hole: PCB antenna, U.FL connector, RPSMA connector
SMT: RF pad, PCB antenna, U.FL connector
Micro: U.FL antenna, RF pad, chip antenna
OPERATING TEMPERATURE −40 ºC to 85 ºC (−40 ºF to 185 ºF)
DIMENSIONS (L X W X H) Through-hole: 2.438 x 2.761 cm (0.960 x 1.087 in)
SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
Micro: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
MEMORY 1 MB / 96 kB RAM
NETWORKING AND SECURITY
PROTOCOL DigiMesh
ENCRYPTION 128/256-bit AES
RELIABLE PACKET DELIVERY Retries/acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 1.71 to 3.8 V
TRANSMIT CURRENT 32 mA at 3.3 V, +8 dBm 193 mA at 3.3 V, +19 dBm
RECEIVE CURRENT 14 mA
SLEEP CURRENT 8 µA at 25 ºC (77 ºF)
REGULATORY APPROVALS**
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
**Visit product certifications for latest updates.
