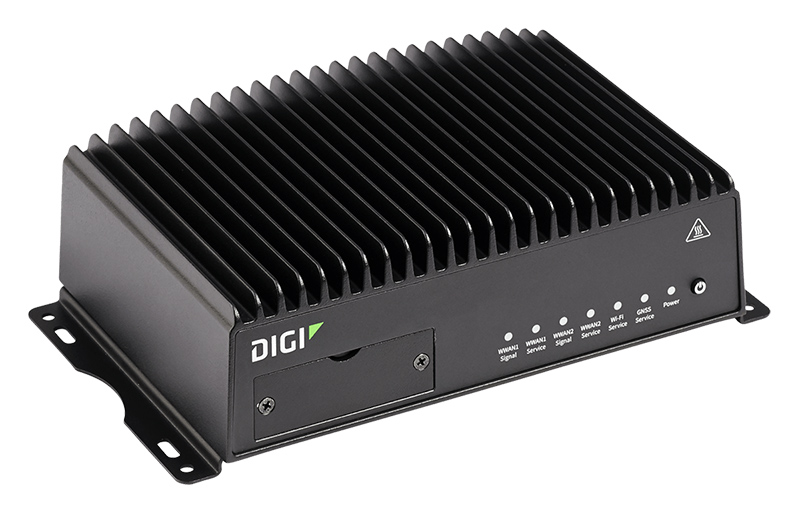

Digi TX54 5G / LTE-Advanced Cellular Router

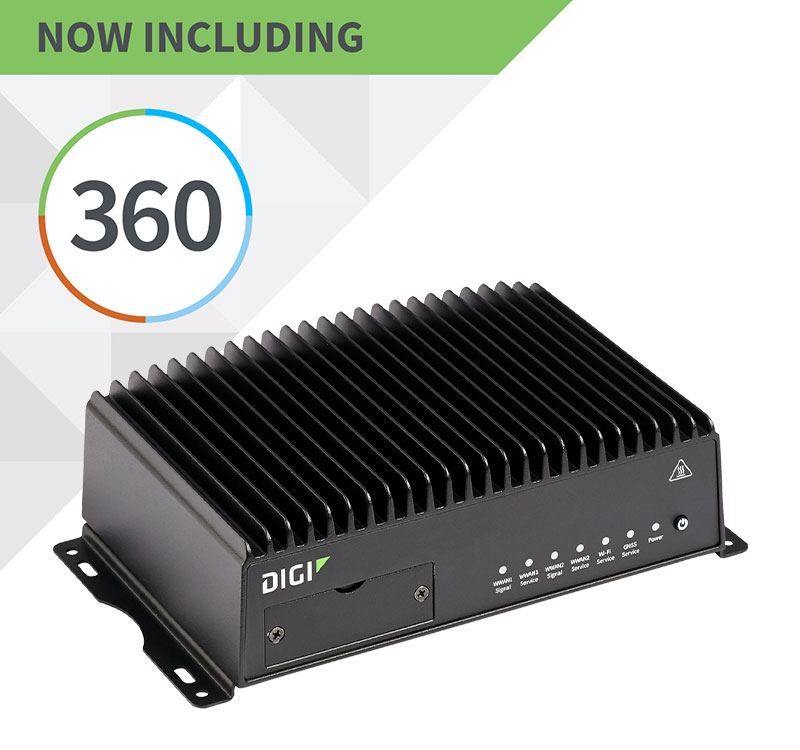

Now with Digi 360

Rugged and secure cellular router for mission critical industrial and transportation applications, including 5G and primary responder models for public safety networks


  • 5G, LTE-A Pro and LTE-A single and dual cellular models
  • Primary responder models for critical communications with FirstNet Trusted™ and Verizon Frontline support
  • Meets U.S. government FIPS 140-2 cybersecurity standard
  • Capable of segmenting private and public data communication across dual cellular modules
  • High-speed Wi-Fi 5 (802.11ac) for WAN or LAN service and optional dual Wi-Fi radios
  • Cryptographic co-processor with secure key generation
  • Built-in Digi TrustFence® for device security,  secure encrypted connections, ongoing monitoring and support
  • Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • Digi Remote Manager® platform for easy setup, mass configuration and management
  • Value-added services include Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity
How to Buy Support

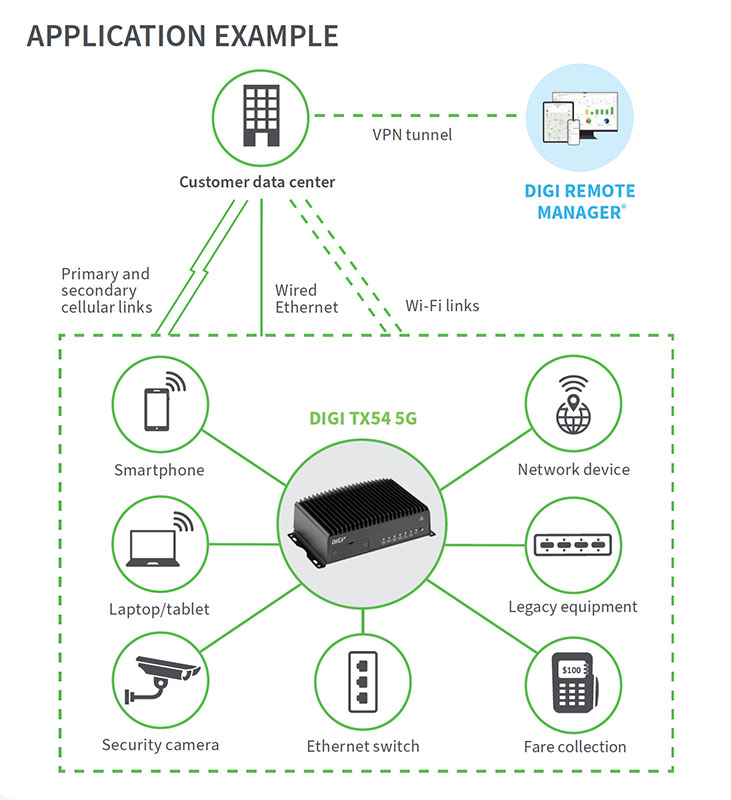

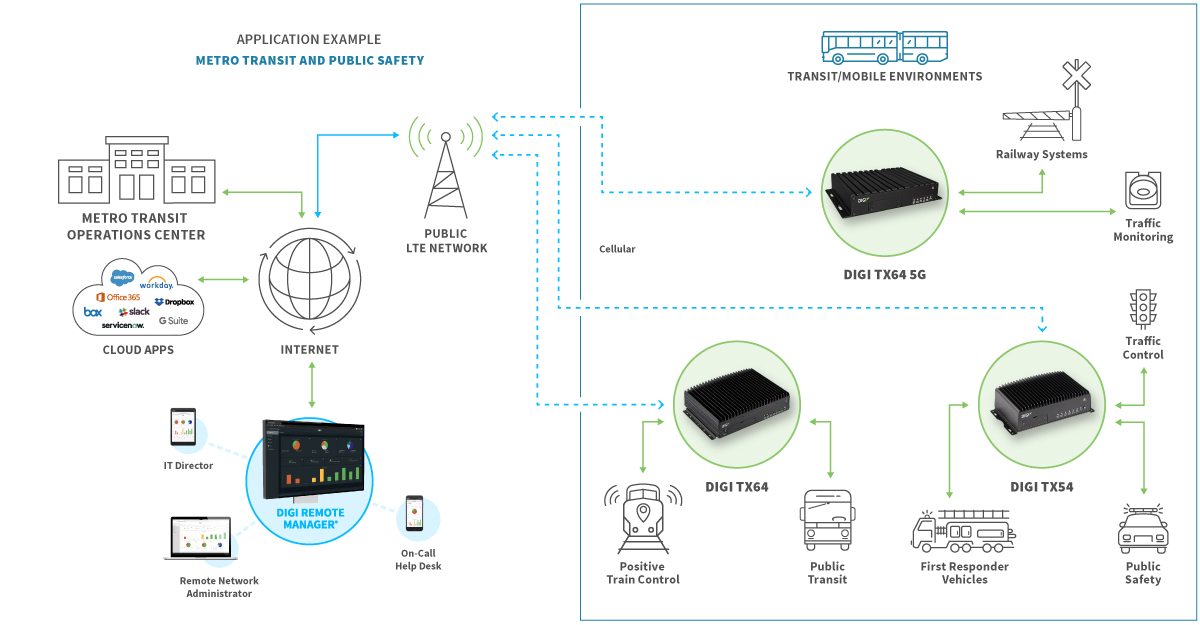

The versatility of Digi TX54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX54 provides secure routing and gateway functionality across wired and wireless communication networks with the latest-generation technology — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution.

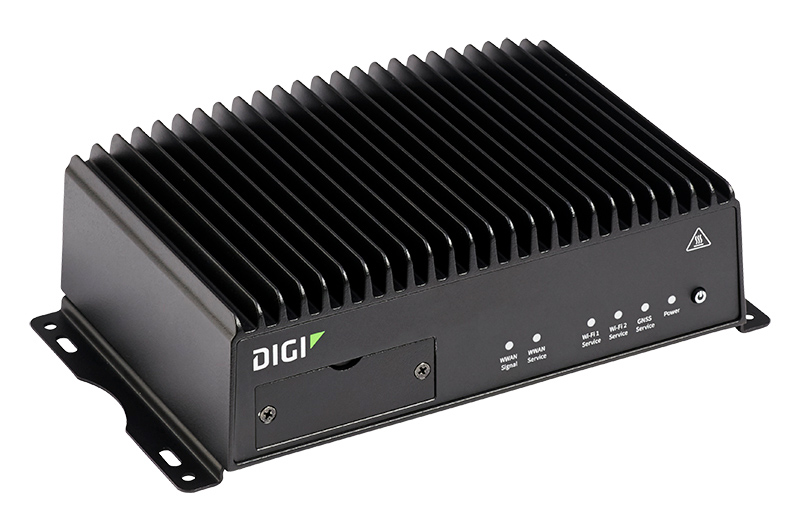

Digi TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications, and with models for single and dual LTE-Advanced, LTE-Advanced Pro and 5G. Digi TX54 also offers models with FirstNet Trusted™ and Verizon Frontline support for the critical demands of first responders and emergency communications. Local private subnets are bridged across public networks to safeguard privacy and integrity.Digi TX54 also meets the U.S government cybersecurity FIPS 140-2 standard.

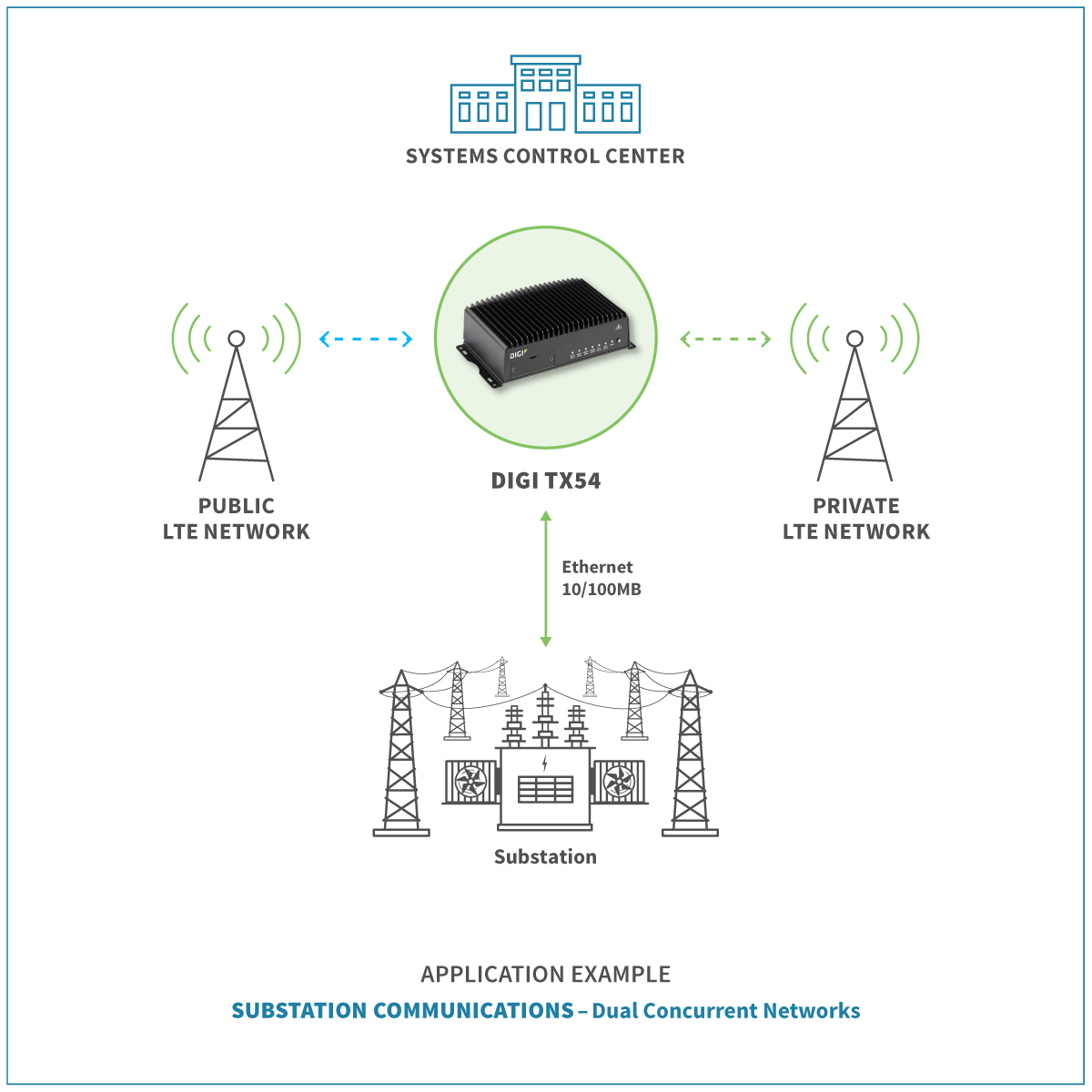

Digi TX54 includes concurrent and independent dual cellular interfaces that prioritize critical communications. The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. Support for Digi Containers and Python allows for flexible edge computing and intelligence.

Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence, a suite of hardware and firmware features, ensures the integrity of Digi TX54 security functions, and chip level encryption protects the onboard file system.

Digi RM allows you to centrally configure, deploy and manage your network and connected devices. Digi WAN Bonding and Digi Mobile VPN value-added services provide constant, secure connectivity with 5G/LTE WAN aggregation, immediate failover and highly resilient application and session persistence with mobile encryption for critical communication.

5G
FirstNet Ready
Verizon Frontline
OnGo Alliance
Download datasheetDownload datasheet User manualsUser manuals & guides User manualsUser manuals & guides Related productsRelated products Add to compareAdd to compare
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

Play Watch the
Video

Introducing Digi Containers

Managing the increasing complexity of IoT applications just got easier. Meet Digi Containers, a value-added service available as an add-on to a Digi Remote Manager® license. The Digi Containers service puts you in control, and helps you simplify your operations.

Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More


Compare Transportation Routers

Compare Transportation Routers

Related Products

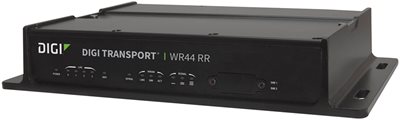

Digi TX64 5G / LTE-Advanced Pro Cellular Router Digi TX64 5G / LTE-Advanced Pro Cellular Router Digi TX40 5G Cellular Router Digi TX40 5G Cellular Router Digi WR31 Digi WR31 Digi WR44 RR Digi WR44 RR Digi Remote Manager Digi Remote Manager Digi Containers Digi Containers Digi Mobile VPN Digi Mobile VPN Digi WAN Bonding Digi WAN Bonding
Digi TX54 5G with Digi 360
SKU: TX54-A152 New
Digi TX54 5G — single 5G, dual Wi-Fi, global		 TX54-A152 How to Buy
SKU: TX54-A156 New
Digi TX54 - single 5G, Wi-Fi, global		 TX54-A156 How to Buy
SKU: TX54-A256 New

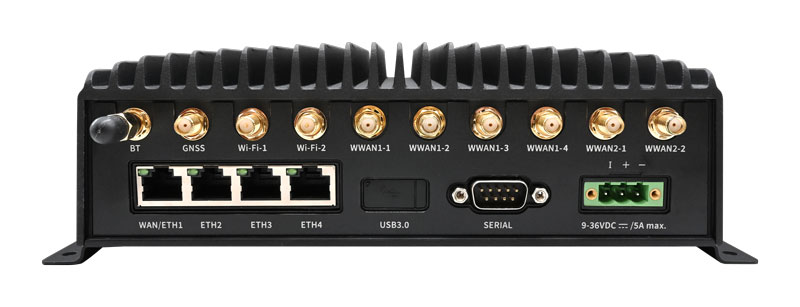

Digi TX54 5G — dual 5G, Wi-Fi, global		 TX54-A256 How to Buy
Digi TX54 with Digi 360 — Primary Responder
SKU: TX54-A146 Digi TX54 Primary Responder — single LTE-Advanced Pro Cat 12, Wi-Fi, North America TX54-A146 How to Buy
SKU: TX54-A246 Digi TX54 Primary Responder — dual LTE-Advanced Cat 12, Wi-Fi, North America TX54-A246 How to Buy
Accessories
SKU: 76002145 Digi TX54 5G accessory kit — dual Wi-Fi 76002145 How to Buy
SKU: 76002143 Digi TX54 5G accessory kit — single cellular 76002143 How to Buy
SKU: 76002144 Digi TX54 5G accessory kit — dual cellular  76002144 How to Buy
SKU: 76002086 Digi TX54 4G accessory kit — dual Wi-Fi 76002086 How to Buy
SKU: 76002084 Digi TX54 4G accessory kit — single cellular 76002084 How to Buy

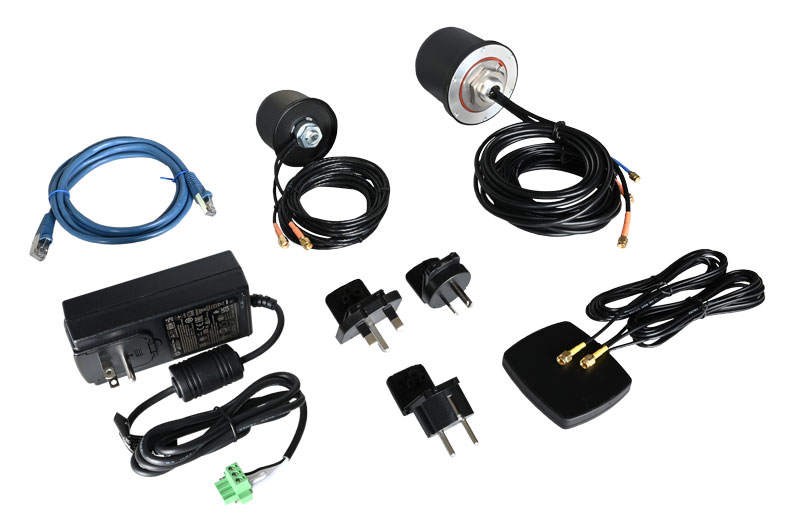

SKU: 76002085 Digi TX54 4G accessory kit — dual cellular 76002085 How to Buy
SKU: 76002091 Digi TX54 DIN rail bracket 76002091 How to Buy

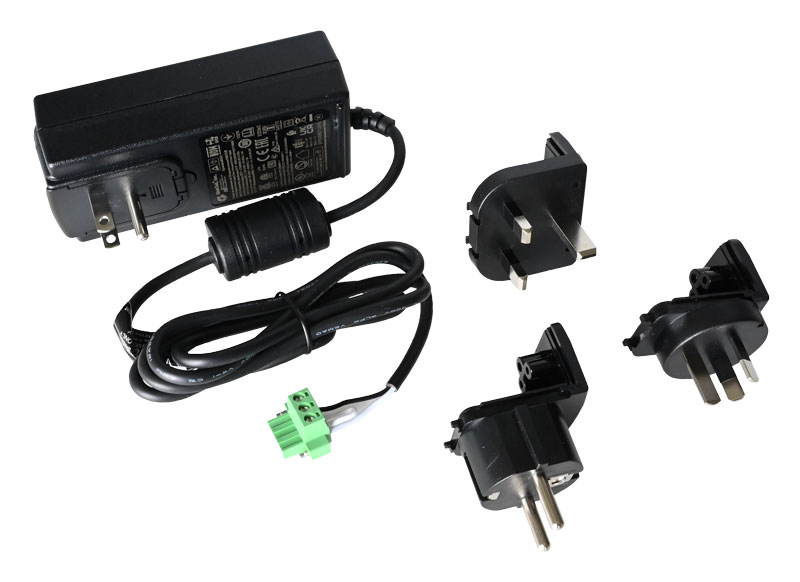

SKU: 76002121 Power supply — 100 - 240 VAC, 1.5 A input, 12 VDC, 5 A output, extended temperature range 76002121 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-TX54-EXT-2YR Digi 360 extension for two additional years for Digi TX54 DIGI360-TX54-EXT-2YR How to Buy
SKU: DIGI360-TX54-EXT-4YR Digi 360 extension for four additional years for Digi TX54 DIGI360-TX54-EXT-4YR How to Buy
SKU: DIGI360-TX54-REN-1YR Digi 360 renewal for one additional year for Digi TX54 DIGI360-TX54-REN-1YR How to Buy
SKU: DIGI360-TX54-REN-3YR Digi 360 renewal for three additional years for Digi TX54 DIGI360-TX54-REN-3YR How to Buy
SKU: DIGI360-TX54-REN-5YR Digi 360 renewal for five additional years for Digi TX54 DIGI360-TX54-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.		   Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers		   Get Started
Digi Mobile VPN
Secure VPN service with persistent connectivity for critical communications		   Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections		   Get Started
SPECIFICATIONS Digi TX54 5G with Digi 360*
WIRELESS INTERFACES
CELLULAR**
5G MODELS 5G NR Sub-6 GHz bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n48 CBRS, n66, n71, n77, n78, n79, C-band
4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48 CBRS, B66, B71
3G UMTS/HSPA+ bands: B1, B2, B4, B5, B6, B8, B9, B19

4G LTE-ADVANCED PRO MODELS (UNITED STATES / CANADA)

 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48 CBRS, B66
3G UMTS/HSPA+ bands: B1, B2, B4, B5, B6, B8, B9, B19
4G LTE-ADVANCED MODELS (GLOBAL) 4G LTE-Advanced bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B66
3G UMTS/HSPA+ bands: B1, B2, B4, B5, B8
CONNECTOR 4G single cellular models: (2) 50 Ω SMA (center pin: female)
4G dual cellular models: (4) 50 Ω SMA (center pin: female)
5G single cellular models: (4) 50 Ω SMA (center pin: female)
5G dual cellular models: (6) 50 Ω SMA (center pin: female)
SIM SLOTS Single cellular models: (2) Mini-SIM (2FF)
Dual cellular models: (4) Mini-SIM (2FF)
SIM SECURITY SIM slot cover plate included
WI-FI
TECHNOLOGY Wi-Fi 5 (802.11ac) 2.4 GHz and 5 GHz, 2x2 MIMO
SECURITY WPA, WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards
HOTSPOT Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication
3RD PARTY SERVICES Content filtering, embedded advertising
USER MANAGEMENT Per client usage limit and reporting
MODES Simultaneous client and access point support
Single Wi-Fi models: up to 8 access points, up to 128 client connections
Dual Wi-Fi models: up to 16 access points, up to 256 client connections
CONNECTORS Single Wi-Fi models: (2) 50 Ω RP-SMA (center pin: male)
Dual Wi-Fi models: (4) 50 Ω RP-SMA (center pin: male)
BLUETOOTH®
TECHNOLOGY Bluetooth 4.2
GNSS
TECHNOLOGY GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support
SENSITIVITY Tracking and navigation: −163 dB
PROTOCOL NMEA and TAIP
CONNECTOR (1) 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive

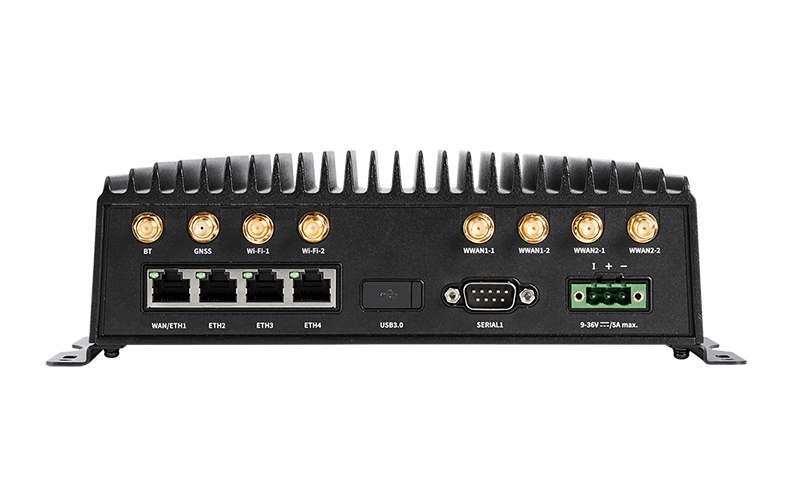

WIRED INTERFACES
ETHERNET

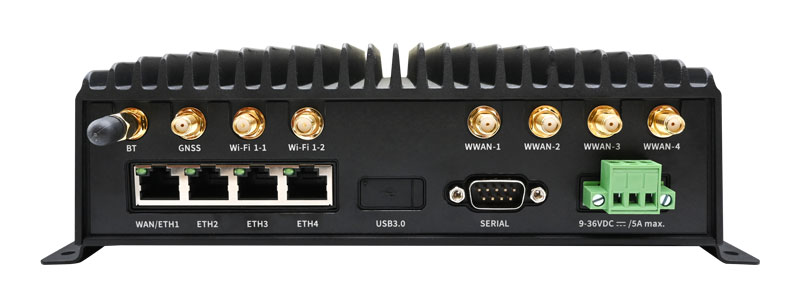

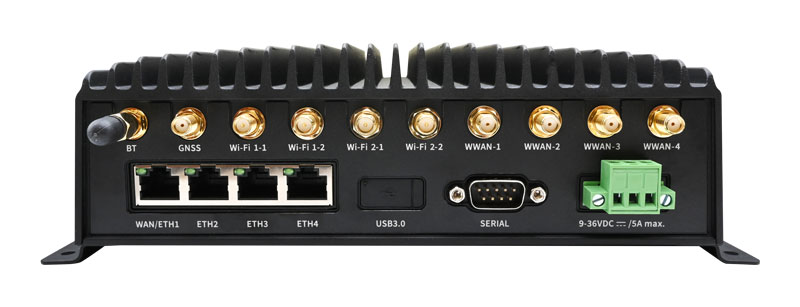

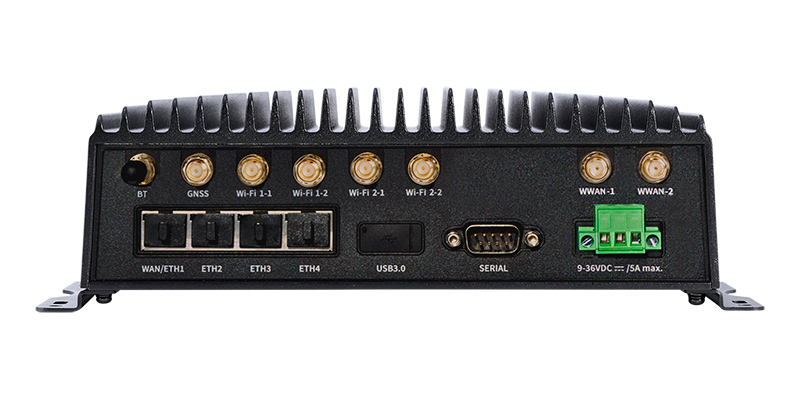

PORTS / CONNECTORS (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
SERIAL
PORTS / CONNECTORS (1) RS-232; DB-9 male (DTE)
USB
PORTS / CONNECTORS (1) USB 3.0 Type A
SOFTWARE AND MANAGEMENT*
REMOTE MANAGEMENT Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT Web UI (HTTPS), CLI (SSH, serial)
MANAGEMENT TOOLS SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
MEMORY

RAM / FLASH 256 MB / 512 MB
PHYSICAL

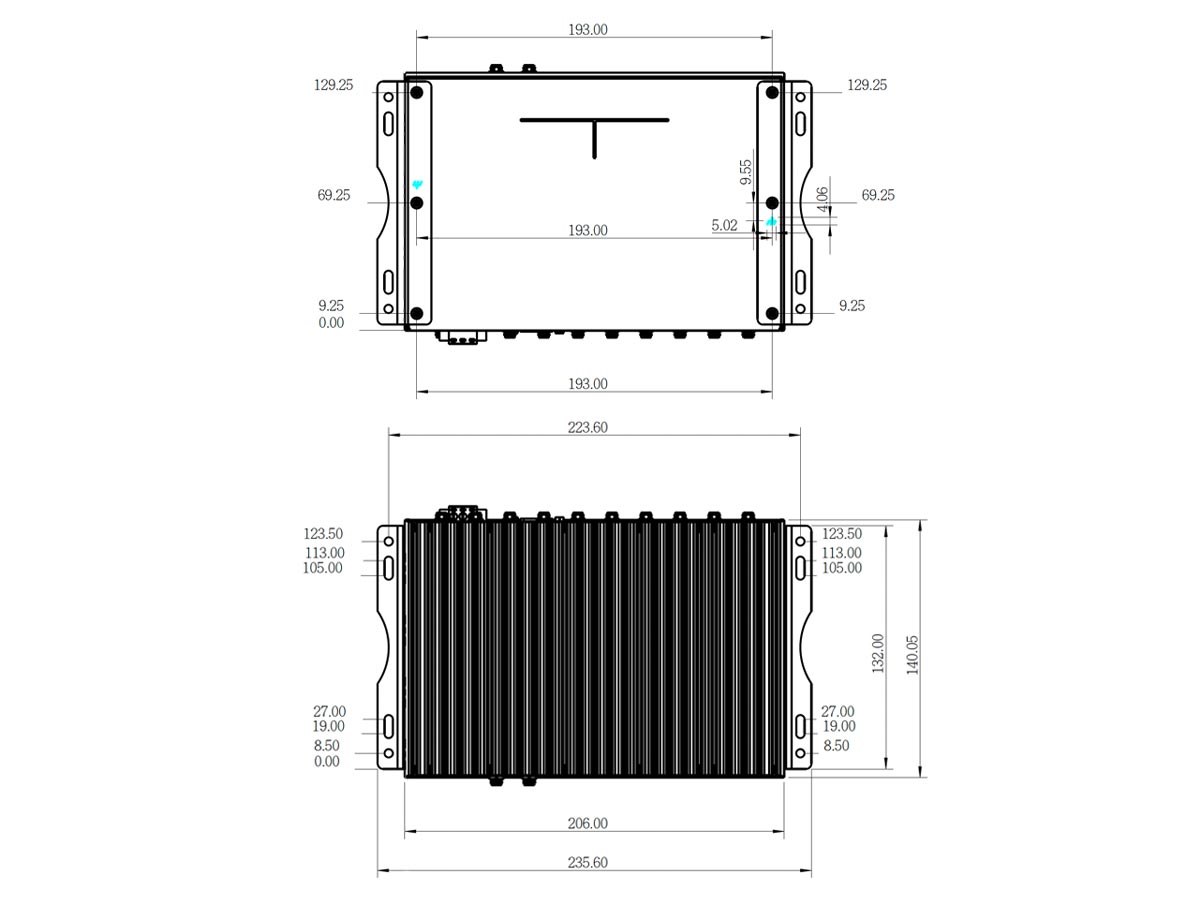

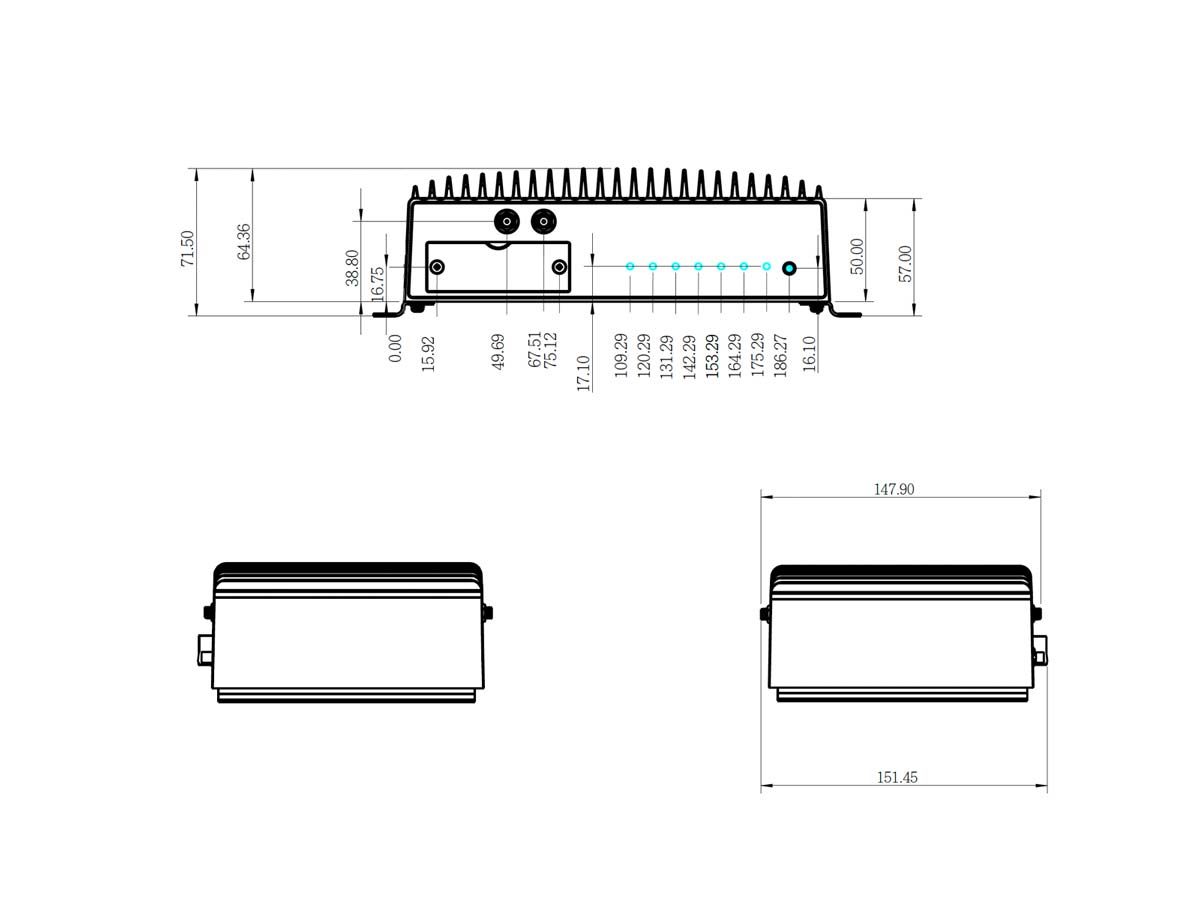

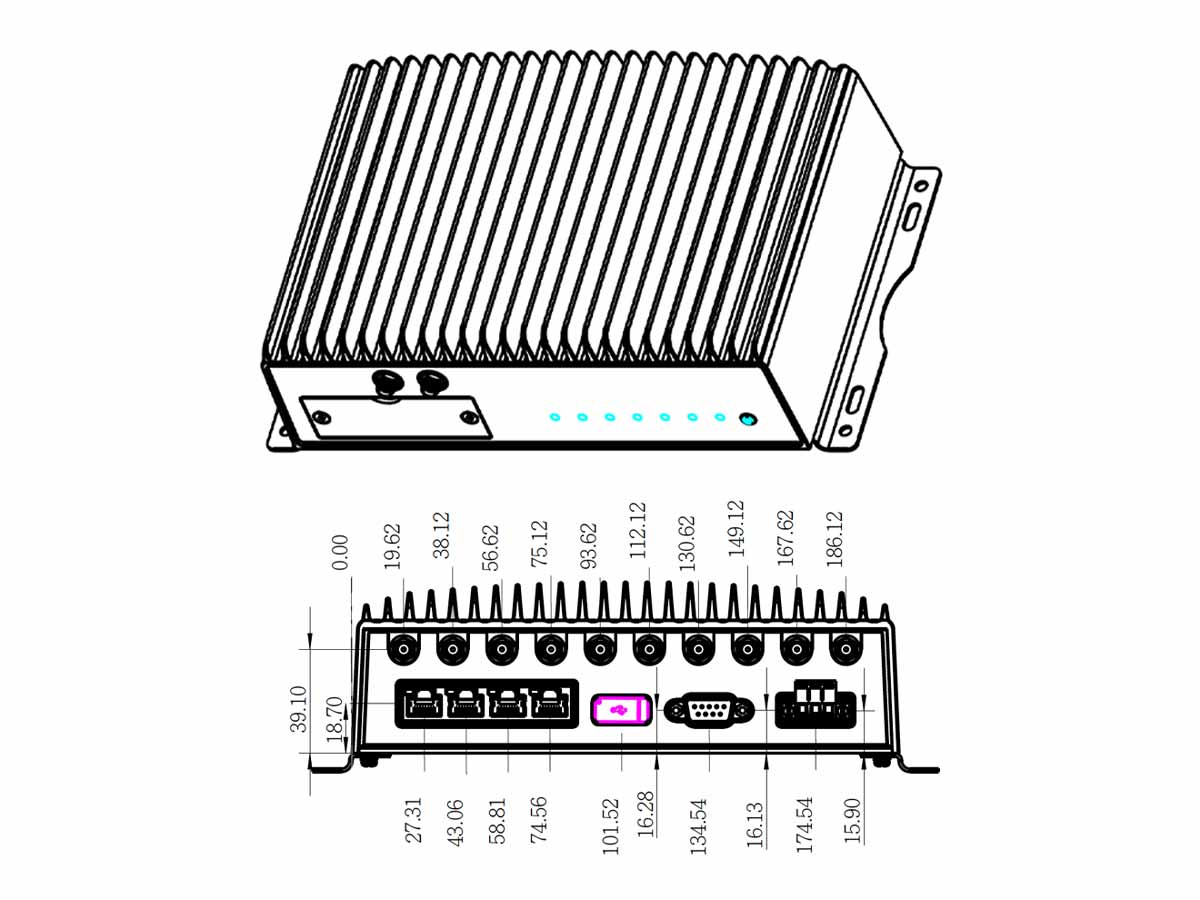

DIMENSIONS (L X W X H) 146 mm x 210 mm x 63.5 mm (5.75 in x 8.25 in x 2.5 in)
WEIGHT 1.5 kg (3.3 lbs)

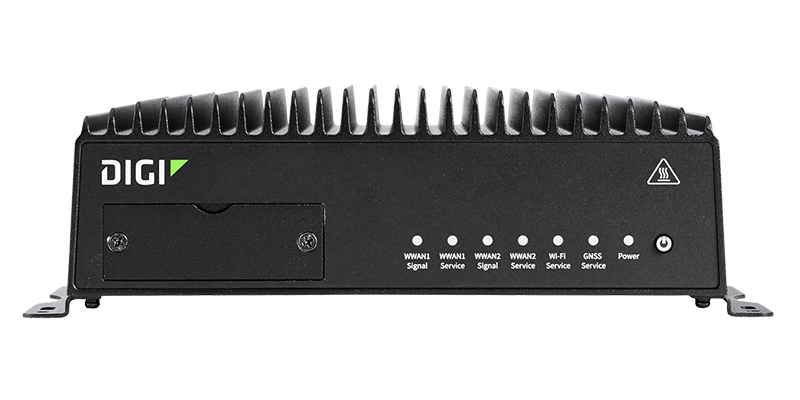

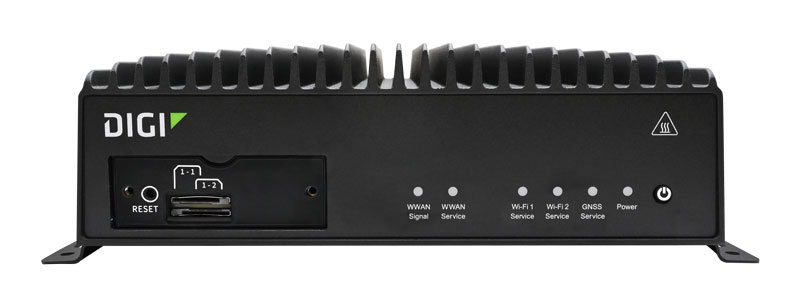

STATUS LEDS Power, WWAN signal and service (per module), Wi-Fi service (per module), GNSS, Ethernet (link, activity)
ENCLOSURE / RATING Aluminium / IP54
POWER REQUIREMENTS
POWER INPUT 9 – 36 VDC, reverse polarity protection, ignition sense
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 13 W typical (idle); 20 W typical (peak Tx/Rx)
ENVIRONMENTAL
MOUNTING OPTIONS Flexible mounting options
OPERATING TEMPERATURE −34 °C to 74 °C (−29 °F to 165 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
NEMA Meets the NEMA TS2 environmental requirements
APPROVALS*
CELLULAR PTCRB, AT&T, FirstNet Trusted™, T-Mobile, Verizon, Verizon Frontline
SAFETY EN 60950, EN 62368, CB scheme
VEHICLE ISO 7637-2/3, ISO 10605, ISO 16750-2 Pulses 4/5a/5b, SAE J1113, E-Mark (UNECE Reg. 10)
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN 55024, EN 55032
ENVIRONMENTAL MIL-STD-810G (temperature, humidity, vibration, shock, dust)
WARRANTY***
PRODUCT WARRANTY 3-year
*Includes the Digi 360 solution for Digi TX54 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.
