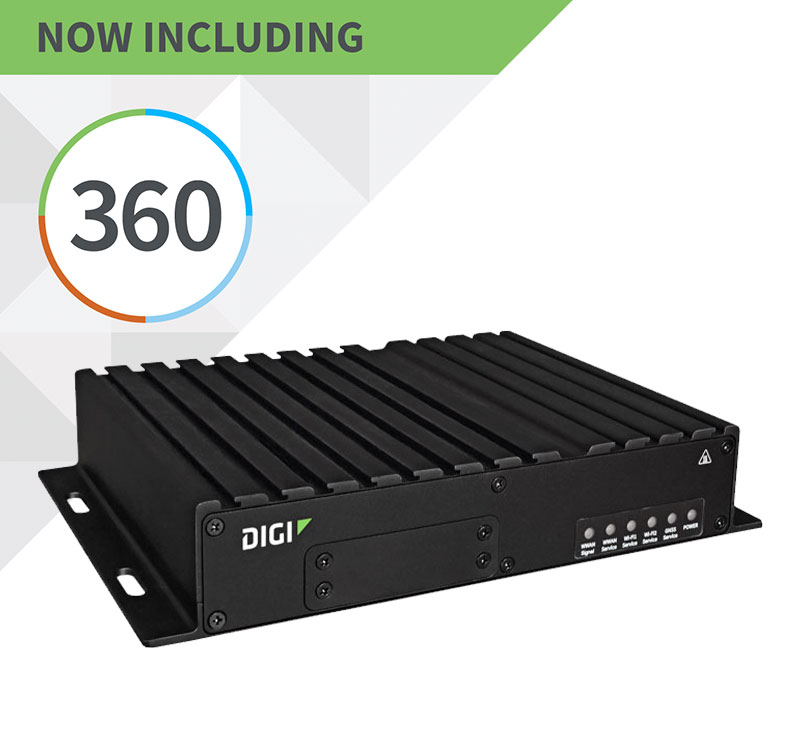

Digi TX64 5G Rail Cellular Router

Now with Digi 360

5G railway-rated cellular router customized for both on-board heavy and light rail railways and metros


  • High-speed 5G NR cellular radio with 4G LTE-Advanced Pro Cat 20 and 3G fallback
  • FirstNet Trusted™ for primary responder communication
  • Meets U.S. government FIPS 140-2 cybersecurity standard
  • WR44 RR drop-in replacement and upgrade
  • Wired Gigabit M12 Ethernet (4-port) for onboard systems
  • Dual concurrent Wi-Fi 6 2 x 2 backhaul, with passenger Wi-Fi over Wi-Fi 6 2 x 2 access point
  • Cryptographic co-processor with secure key generation and storage
  • Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • Value-added services include Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity
How to Buy Support

Ideal for challenging rail transportation environments, the Digi TX64 5G Rail router offers 5G/4G/3G cellular connectivity with true enterprise class routing, security, firewall and integrated VPN — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution. It offers a flexible interface design with an integrated Wi-Fi 6 access point and client, USB, serial, inertial-guided GNSS, Bluetooth® and 4-port Gigabit Ethernet switch, as well as a variety of configuration options.

5G is a game-changer for the rail industry. Until now, the speeds needed to securely move massive amounts of data quickly were reserved for wired networks. But today, with the rapid expansion of 5G (with LTE fallback), this fully rail-certified device delivers 5G performance, either as a primary or failover connection.

Customers and suppliers alike will begin to expect 5G connectivity whether it is for other on-board equipment applications or the information being provided to riders. Paving the way for compatibility with FRMCS standards, this first industry-standard 5G rail-rated device prepares you for the future today.

Digi TX64 5G Rail is equipped with precision train positioning via an Untethered Dead Reckoning (UDR) module that reports location data more accurately by taking into account acceleration, speed and angular rate. Regardless of issues with traditional GNSS in certain weather conditions or tunnels, UDR allows you to monitor the train’s exact positioning and speed, optimize each train’s location and prevent collisions without the use of additional onboard systems.

Digi TX64 5G Rail features FirstNet Trusted™ support to meet the critical demands of first responders for emergency communications. Digi TX64 5G Rail also meets the U.S. government cybersecurity FIPS 140-2 standard and supports the Digi TrustFence® security framework to ensure it is secure on day one and stays secure throughout its life. Easily deploy and centrally manage Digi TX64 5G Rail with Digi RM and available value-added services.

5G
FirstNet Ready
OnGo Alliance
Download datasheetDownload datasheet User manualsUser manuals & guides Related productsRelated products Add to compareAdd to compare
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More

Digi WAN Bonding Logo

Introducing Digi WAN Bonding

Digi WAN Bonding combines multiple connections into a seamless and resilient connectivity solution that ensures optimal performance and maximum uptime anywhere around the world.

Learn More


Go-To 5G Connectivity

for the New Age of Retail

Tap into 5G speed and capacity to support unique shopping environments and experiences. Meet Our 5G Solutions

Compare Transportation Routers

Compare Transportation Routers
White Paper

Drop-In Connectivity for Data on the Move

New Digi routers for versatile public and private on-board communications

Get a Copy

Related Products

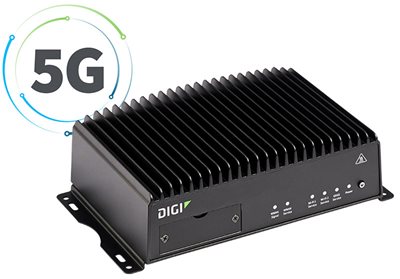

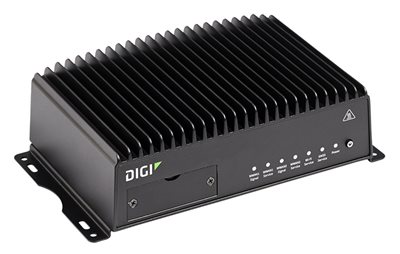

Digi TX64 5G / LTE-Advanced Pro Cellular Router Digi TX64 5G / LTE-Advanced Pro Cellular Router Digi TX54 5G / LTE-Advanced Cellular Router Digi TX54 5G / LTE-Advanced Cellular Router Digi TX40 5G Cellular Router Digi TX40 5G Cellular Router Digi WR44 RR Digi WR44 RR Digi Remote Manager Digi Remote Manager Digi Containers Digi Containers Digi Mobile VPN Digi Mobile VPN Digi WAN Bonding Digi WAN Bonding
Digi TX64 5G Rail with Digi 360
SKU: TX64-R210 Digi TX64 5G Rail router — 5G / LTE-Advanced Pro Cat 20, dual Wi-Fi, UDR, global TX64-R210 How to Buy
Accessories
SKU: 76002108 Digi TX64 Rail power connector 76002108 How to Buy
SKU: 76002109 Digi TX64 5G Rail Ethernet to Digi WR44 RR adapter cable 76002109 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-TX64-EXT-2YR Digi 360 extension for two additional years for Digi TX64 DIGI360-TX64-EXT-2YR How to Buy
SKU: DIGI360-TX64-EXT-4YR Digi 360 extension for four additional years for Digi TX64 DIGI360-TX64-EXT-4YR How to Buy
SKU: DIGI360-TX64-REN-1YR Digi 360 renewal for one additional year for Digi TX64 DIGI360-TX64-REN-1YR How to Buy
SKU: DIGI360-TX64-REN-3YR Digi 360 renewal for three additional years for Digi TX64 DIGI360-TX64-REN-3YR How to Buy
SKU: DIGI360-TX64-REN-5YR Digi 360 renewal for five additional years for Digi TX64 DIGI360-TX64-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.		   Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers		   Get Started
Digi Mobile VPN
Secure VPN service with persistent connectivity for critical communications		   Get Started
Digi WAN Bonding
Resilient connectivity and maximum performance across multiple connections		   Get Started
SPECIFICATIONS Digi TX64 5G Rail with Digi 360*
WIRELESS INTERFACES
WWAN**
5G SUB-6 GHZ WITH 4G LTE-ADVANCED PRO AND 3G FALLBACK — GLOBAL 5G Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77, n78, n79, C-band
4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 — FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48 CBRS, B66, B71
3G: B1, B2, B3, B4, B5, B6, B8, B9, B19
CONNECTOR (4) 50 Ω TNC (center pin: female)
SIM SLOTS 2 Mini-SIM (2FF)
SIM SECURITY SIM slot cover plate included
WI-FI
TECHNOLOGY Private backhaul: Wi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 x 2 MIMO, up to 128 clients
Public Wi-Fi: Wi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 x 2 MIMO, up to 128 clients
HOTSPOT Captive portal with customizable splash page
AUTHENTICATION Basic terms and conditions acceptance, enterprise RADIUS, shared password, HotSpotSystem
THIRD-PARTY SERVICES Content filtering, embedded advertising
MODES Up to 8 access points and 1 client per Wi-Fi module (16 + 2 total)
CONNECTORS Private backhaul: (2) 50 Ω RP-TNC (center pin: male)
Public Wi-Fi: (2) 50 Ω RP-TNC (center pin: male)
GNSS
TECHNOLOGY GPS, Galileo, BeiDou and GLONASS with Untethered Dead Reckoning (UDR), multiple geofence support
SENSITIVITY Tracking and navigation: −160 dBm
PROTOCOL NMEA 0183 4.0, TAIP
CONNECTOR (1) 50 Ω RP-TNC (center pin: male); +3.3 VDC active antenna drive
WIRED INTERFACES
ETHERNET
PORTS / CONNECTOR (4) M12 X-CODE / IEEE 802.3; 10/100/1000 Base-T
SERIAL
PORTS / CONNECTOR (1) RS-232; DB-9 male
USB
PORTS / CONNECTOR (2) USB 3.0, Type A
SOFTWARE AND MANAGEMENT*
REMOTE MANAGEMENT Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed), SMS
LOCAL MANAGEMENT Web UI (HTTPS); CLI (SSH, serial)
MANAGEMENT TOOLS SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
MEMORY
RAM / FLASH 2 GB / 8 GB
PHYSICAL
DIMENSIONS (L X W X H) 260 mm x 196 mm x 51 mm (10.2 in x 7.8 in x 2 in)
WEIGHT 3.9 kg (8.6 lbs)
STATUS LEDS Power, WWAN (signal, service) per module, Wi-Fi service (per module), GNSS service, LAN (link, activty)
ENCLOSURE / RATING Aluminum alloy / IP66
POWER
POWER INPUT 9 – 36 VDC, 60 W minimum power source required, reverse polarity protection, M12 T-CODE with ignition sense
POWER CONSUMPTION 28 W typical (idle), 41 W (peak RF Tx/Rx)
ENVIRONMENTAL
MOUNTING Slotted mounting flanges, grounding stud
OPERATING TEMPERATURE −40 °C to 74 °C (−40 °F to 165.2 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 185 °F)
RELATIVE HUMIDITY 5% to 95% (non-condensing) at 25 °C (77 °F)
APPROVALS**
CELLULAR PTCRB, AT&T, FirstNet Trusted™, T-Mobile, Verizon
SHOCK / VIBRATION MIL-STD-810G: vibration (Method 414.6C-10, Category 11), shock (Method 516.6, Procedure I)
EMISSIONS/IMMUNITY FCC Part 15 Class B, EN 50121-3-2, CISPR 16-2-3
ENVIRONMENTAL / INDUSTRIAL EN 50155, EN 45545-2, IEC 60068-2-1/2-2/2-30
WARRANTY***
PRODUCT WARRANTY 3-year
*Includes the Digi 360 solution for Digi TX64 5G Rail (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.



ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; serial Modbus, MQTT client, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; DMNR, Dual-APN; X.509 certificate management; VRRP+
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; Ethernet bonding; GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover; Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS; Nagios, DNS server, NTP server, mDNS, IPerf
LOCAL MANAGEMENT Web interface (HTTPS); CLI (SSH, serial port); SNMP v2c/v3 read-only; custom factory configuration
MANAGEMENT/ TROUBLESHOOTING PROTOCOLS Protocol analyzer with PCAP for Wireshark, event and system logging (with syslog), accessible from Digi Remote Manager, SFTP or SCP, CLI, Web UI, Intelliflow
PROGRAMMING TOOLS/ ENVIRONMENTS Python v3 (regularly updated to newest version)

For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features.
