Digi IX10 Industrial Cellular Router

Now with Digi 360

Rugged, reliable, cost-effective connectivity for critical industrial applications


  • Compact and economical connectivity solution with industrial feature set for public and private cellular networks
  • Redundant connectivity with dual SIMs and Digi SureLink®
  • Global and regional bands with single part number to simplify distribution, deployment and management
  • Meets U.S. government FIPS 140-2 cybersecurity standard
  • Built-in Digi TrustFence® for device security, device identity and data privacy
  • Digi Containers to enable powerful, cost-efficient applications
  • Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
  • Ethernet port and single RJ-50 serial port (RS-232/485)
  • C1D2 rated with IP30 enclosure
  • Migrating from a WR-series device? Get information and tools to setup your new IX-series router.

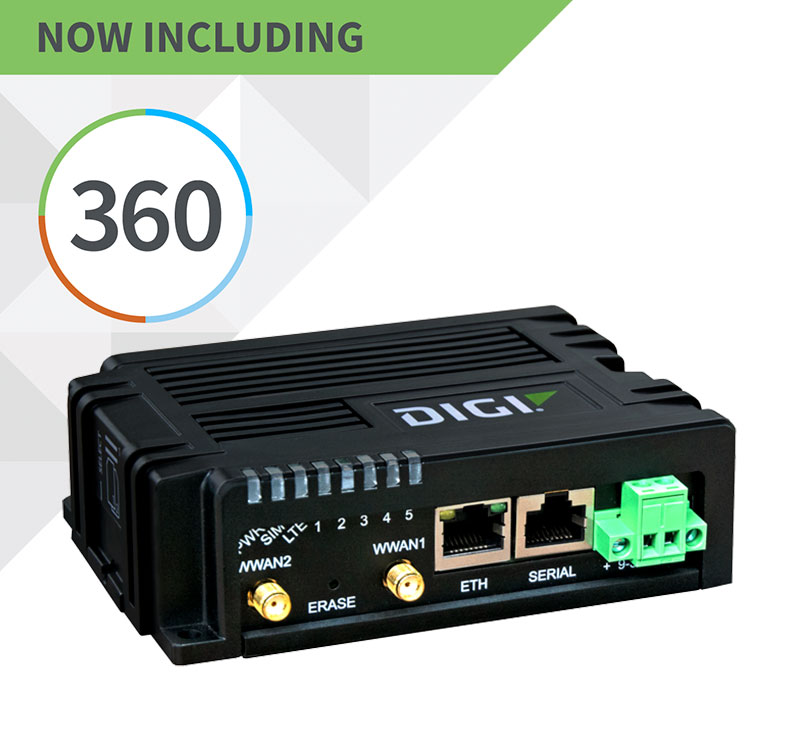

Digi IX10 is a full-featured cellular router built for trouble-free reliability over a long service life — easy to deploy and centrally managed via Digi Remote Manager (Digi RM), which is included in your Digi 360 solution.

Its flexible power and connectivity options make it a versatile and cost-effective choice for industrial, digital signage, ATMs, lottery terminals, kiosks and other unattended retail applications that need to provide secure transactions over public and private cellular networks.

Digi IX10 can operate on public and private LTE networks, with features to assist in network control and management, such as dual SIMs for failover connectivity, VLAN support, load balancing between cellular and Ethernet WANs, dual APNs and configurable APN search.

Digi IX10 features one Ethernet port and one RJ-50 serial port supporting both RS-232 and RS-485. In the event of an interruption to your primary network connection, Digi RM also provides secure out-of-band management of edge devices via Digi IX10's serial port and command-line interface.

Gain critical insights into your deployed devices and manage your network with Digi RM — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support, even for thousands of devices. Digi RM empowers you to evaluate, update and configure your Digi products, while providing easy visibility into the health of your network. It also offers low-touch and no-touch provisioning.

Digi IX10 offers the convenience of a global SKU for simplified global distribution and deployment, as well as cost-optimized SKUs for North America, including a CBRS-only SKU.

OnGo Alliance

Manage Your Network Your Way

Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.

Automated Network Monitoring
Automated Network Monitoring

To keep tabs on dozens, hundreds or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.

Configuration Management
Configuration Management

Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security.

Firmware Updates
Firmware Updates

Today's IoT devices are smarter, more feature rich, and have more tasks to perform at the edge. And they are not static. You may need to update firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.

Edge Computing
Detection and Troubleshooting

Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

Compare Industrial Routers

Compare Industrial Routers
TrustFence

Digi TrustFence

Digi TrustFence is the security framework for Digi networking and embedded solutions. The TrustFence framework requires security to be designed in at the ground floor, resulting in robust security for connected devices. The built-in security of Digi TrustFence gives you secure connections, authenticated boot, encrypted data storage, secure software updates, and excludes all insecure ingress protocols.

Learn More
Digi IX10 with Digi 360
SKU: IX10-00G4 Digi IX10 — LTE Cat 4 Global
  • Global LTE with 3G/2G fallback
  • Ethernet
  • RS-232/485
  • Dual SIMs
  • Accessories not included
IX10-00G4 How to Buy
SKU: IX10-00N4 Digi IX10 — LTE Cat 4 North America
  • LTE Cat 4 North America with 3G fallback
  • Ethernet
  • RS-232/485
  • Dual SIMs
  • Accessories not included
IX10-00N4 How to Buy
SKU: IX10-00C6 Digi IX10 — LTE-Advanced Cat 6 CBRS-only North America
  • LTE-Advanced Cat 6 CBRS-only
  • North America
  • Ethernet
  • RS-232/485
  • No accessories included
IX10-00C6 How to Buy
Accessories
SKU: 76002148 New
Digi LTE Industrial Starter Kit — includes 30 W power supply and 2 wideband cellular antennas
76002148 How to Buy
SKU: 76002104 Industrial extended temperature power supply with plug tips for US, UK, EU, AU; -20° to 70° C (-4° to 158° F) 76002104 How to Buy

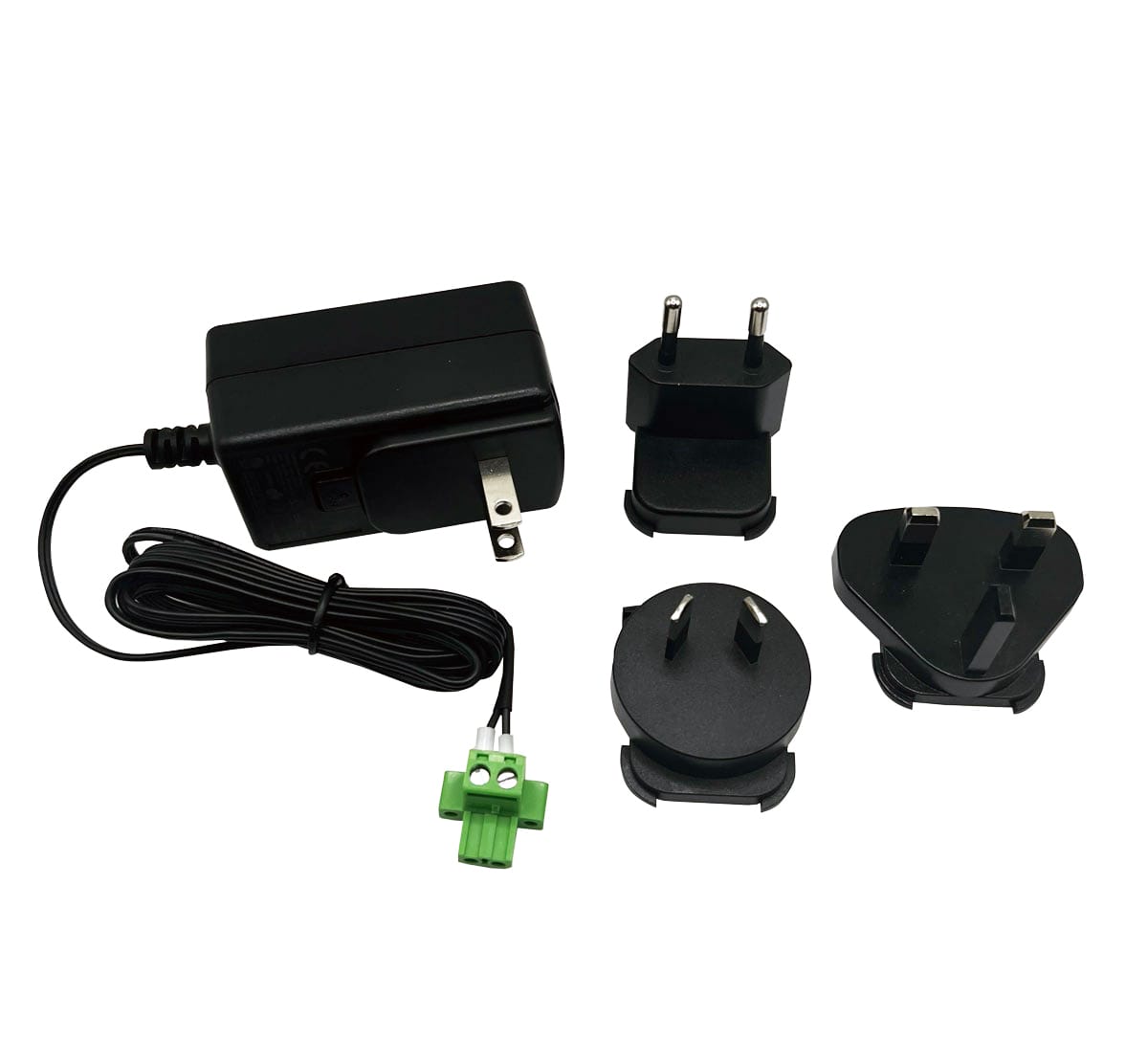

SKU: 76002117 Commercial temperature power supply with plug tips for US, UK, EU, AU; 0° to 40° C (32° to 104° F) 76002117 How to Buy
SKU: 76002103 (1) Cellular antenna (order quantity 2) 76002103 How to Buy
SKU: 76002095 DIN rail clip kit 76002095 How to Buy
SKU: 76000723 Connect EIA 422/485 Devices to Digi MEI products that have 10 pin RJ45 connectors 76000723 How to Buy
Digi 360 Extensions and Renewals
SKU: DIGI360-IX10-EXT-2YR Digi 360 extension for two additional years for Digi IX10 DIGI360-IX10-EXT-2YR How to Buy
SKU: DIGI360-IX10-EXT-4YR Digi 360 extension for four additional years for Digi IX10 DIGI360-IX10-EXT-4YR How to Buy
SKU: DIGI360-IX10-REN-1YR Digi 360 renewal for one additional year for Digi IX10 DIGI360-IX10-REN-1YR How to Buy
SKU: DIGI360-IX10-REN-3YR Digi 360 renewal for three additional years for Digi IX10 DIGI360-IX10-REN-3YR How to Buy
SKU: DIGI360-IX10-REN-5YR Digi 360 renewal for five additional years for Digi IX10 DIGI360-IX10-REN-5YR How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Value-Added Services
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
SPECIFICATIONS Digi IX10 with Digi 360*
CELLULAR
CERTIFICATIONS** Visit product certifications for latest cellular approvals and updates
LTE CAT 4 GLOBAL (G4) LTE Cat 4 Global: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
LTE CAT 4 REGIONAL — NORTH AMERICA (N4) LTE Cat 4 Regional — North America: B2, B4, B5, B12, B13, B14, B66, B71
3G: B2, B4, B5
LTE-A CAT 6 CBRS-ONLY — NORTH AMERICA (C6) LTE-Advanced Cat 6 CBRS-only — North America: B42, B43, B48 (CBRS)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Behind SIM cover, secured with screw (#1 Phillips)
SOFTWARE AND MANAGEMENT*
REMOTE MANAGEMENT Digi Remote Manager; SNMP v2/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
MEMORY 256 MB RAM, 256 MB flash
ETHERNET
PORTS (1) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) RJ-50 10-pin (10P10C); RS-232/485; software selectable
- RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI)
- RS-485 (TX/RX+; RX/TX-); half-duplex
PHYSICAL
DIMENSIONS (L x W x H) 118 mm x 88 mm x 35 mm (4.65 in x 3.46 in x 1.38 in)
WEIGHT 0.39 kg (0.86 lb)
STATUS LEDs Power, Internet, SIM 1, SIM 2, SIM fail, LTE, signal strength (5)
ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30
POWER REQUIREMENTS
POWER INPUT 9 - 30 VDC, reverse polarity protection, 1.0 A maximum
POWER CONSUMPTION Configurable low-power modes; 1.5 W (light traffic flow), 3.5 W (peak data transmission); 1.25 W (low power mode, idle traffic)
ACCESSORIES
AVAILABLE ACCESSORIES Accessories not included. Available accessories: industrial extended temperature or commercial power supply (required), and cellular antennas, DIN rail clip and EIA 422/485 to RJ-45 connector (recommended / optional)
ENVIRONMENTAL
OPERATING TEMPERATURE −40 °C to 70 °C (−40 °F to 158 °F); device performance may be impacted above 50 °C (122 °F)
STORAGE TEMPERATURE −40 °C to 85 °C (−40 °F to 85 °F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS**
CELLULAR Visit product certifications for latest cellular approvals and updates
SAFETY IEC 62368-1, CB, EN 62311, UL 121201 9th Edition, CAN/CSA C22.2 NO.213-17
ENVIRONMENTAL ROHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
WARRANTY***
PRODUCT WARRANTY 1-year
*Includes the Digi 360 solution for Digi IX10 (1-year) with Digi Remote Manager, warranty and customer care.
**Visit product certifications for latest approvals and updates.
***Product warranty can be extended with Digi 360 extensions or renewals.



ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation, TLS 1.2 and above, OpenVPN client and server, VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS

*For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features.
